-MA-22; -MB-34; -MC-34
OriginWater
Product Overview:

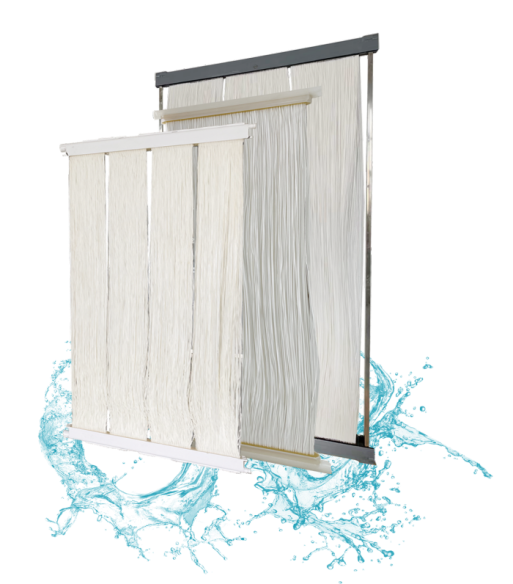

The MBR module adopts the latest reinforced PVDF hollow fiber membrane with high strength, high flux and strong adaptability. The process applies advanced fiber arrangement technology that can evenly array the fiber, which enables the membrane to have a higher anti-fouling performance.
Systems of membrane module based on the PVDF hollow fiber is more integrated, has more packing density and higher productivity quality, and can be simply installed and operated.
The modules of the products can be applied in municipal/industrial effluent water treatment, high concentrated organic waste water treatment, etc, which can effectively avoid leaking problem of suspended solids occurred in conventional sedimentation separation process, and remove colon bacillus and other microorganisms.
Product Features:
Gradient Pore Structure; Premium Permeation Quality;
Embedded Coating Technology; Strong Membrane Fiber;
Automatic Fiber Arrangement; High Quality and Effectiveness;
Flexible Glue Protection; Stable Permeation Quality;
High Operation Flux; High Anti-fouling Performance
Prameters:
| Item | Unit | Specification | |||
| Model | -- | -MA-22 | -MB-34 | -MB-34 | |
| Membrane Area | m2 | 22 | 34 | 34 | |
| Material | Hollow Fiber | -- | Double Modified PET+PVDF | ||
| Sealant Resin | -- | Polyurethane Resin | |||
| Housing Materia | -- | ABS | UPVC | ABS | |
| Support | -- | -- | -- | SUS304 | |
| Internal/External Diameter | mm | 1.0/2.0 | 1.2/2.2 | 1.0/2.0 | |
| Pore Diameter | μm | 0.1 | |||
| Dimension | mm | 535*45*2000 | 850*49*2138 | 1250*30*2000 | |
| Weight for Transport | kg | 15 | 17 | 17 | |
Note: customized orders can be taken by the company.
Operation Conditions:
| Item | Unit | Ref. |
| Operation Temperature | ℃ | 5-40 |
| Operation Range | pH | 6-9 |
| Max. Tolerence Range | pH | 2-12 |
| Designed Flux | L/m2·h | 15-25 |
| Back Wash Flux | L/m2·h | 30-50 |
| Operation Mode | Negtive Pressure Suction | |
| Operation Transmembrane Pressure Difference | kPa | 15-35 |
| Max. Transmembrane Pressure Difference | kPa | 50 |
Note: operation flux is subject to quality of feed and designed conditions.
