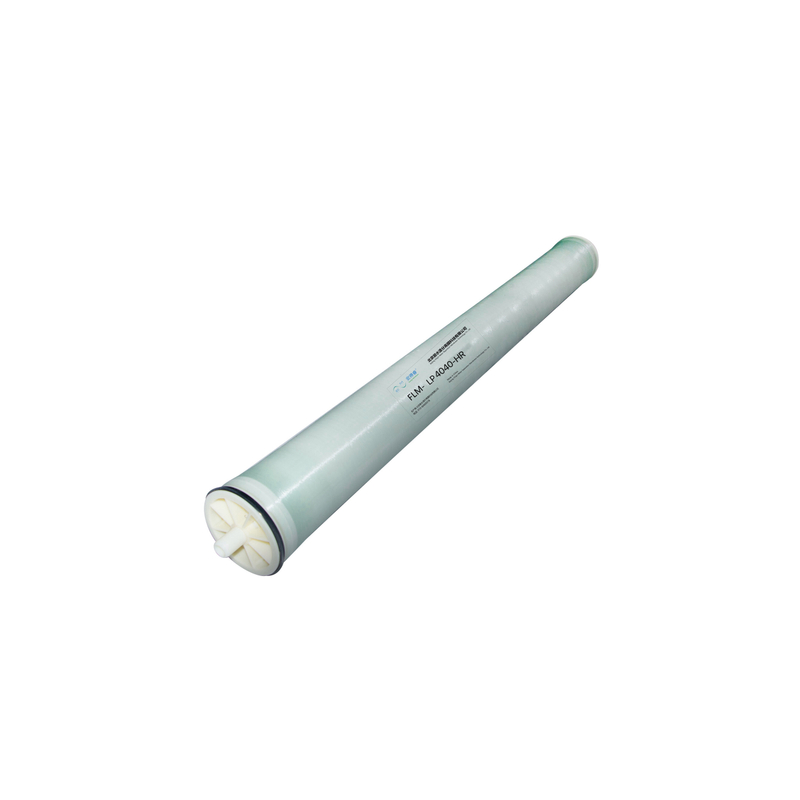

FLM-LP4040-HR
Beijing OriginWater Co.,Ltd.
LP series industrial low-pressure RO membrane elements adopt the latest materials and production technology, feature in high salt rejection rate, high water permeation, strong chemical withstanding and excellent anti-fouling performance. The products are suitable for the desalination of micro-polluted surface water with TDS up to 10,000ppm, the reuse of cooling cycle sewage water.
Product Features
High flux: large effective membrane area, high flux under low pressure;
Strong fouling resistance performance: the special anti-fouling coating can ensure the sheets work normally under extreme conditions;
Strong chemical tolerance: the elements can be washed by acid or alkali for multiple times, having longer life expectancy;
Performance Parameters
Model | Average Flux GPD（m3/d） | Stable Salt Rejection Rate/% | Effective Membrane Area/ft²(m2) | Feed Spacer Thickness/mil |
FLM-LP4040-HR | 2400(9.1) | 99.50 | 85（8） | 31 |
1.Note: individual element permeate productivity may vary ± 20%.
2. Test conditions: pressure: 225psi(1.55MPa), temperature: 25℃, 2000ppmNaCI, recovery rate 15%、pH 7.5-8.0.
Element Dimensions
LP series industrial low-pressure RO membrane elements adopt the latest materials and production technology, feature in high salt rejection rate, high water permeation, strong chemical withstanding and excellent anti-fouling performance. The products are suitable for the desalination of micro-polluted surface water with TDS up to 10,000ppm, the reuse of cooling cycle sewage water.
Product Features
High flux: large effective membrane area, high flux under low pressure;
Strong fouling resistance performance: the special anti-fouling coating can ensure the sheets work normally under extreme conditions;
Strong chemical tolerance: the elements can be washed by acid or alkali for multiple times, having longer life expectancy;
Performance Parameters
Model | Average Flux GPD（m3/d） | Stable Salt Rejection Rate/% | Effective Membrane Area/ft²(m2) | Feed Spacer Thickness/mil |
FLM-LP4040-HR | 2400(9.1) | 99.50 | 85（8） | 31 |
1.Note: individual element permeate productivity may vary ± 20%.
2. Test conditions: pressure: 225psi(1.55MPa), temperature: 25℃, 2000ppmNaCI, recovery rate 15%、pH 7.5-8.0.
Element Dimensions
