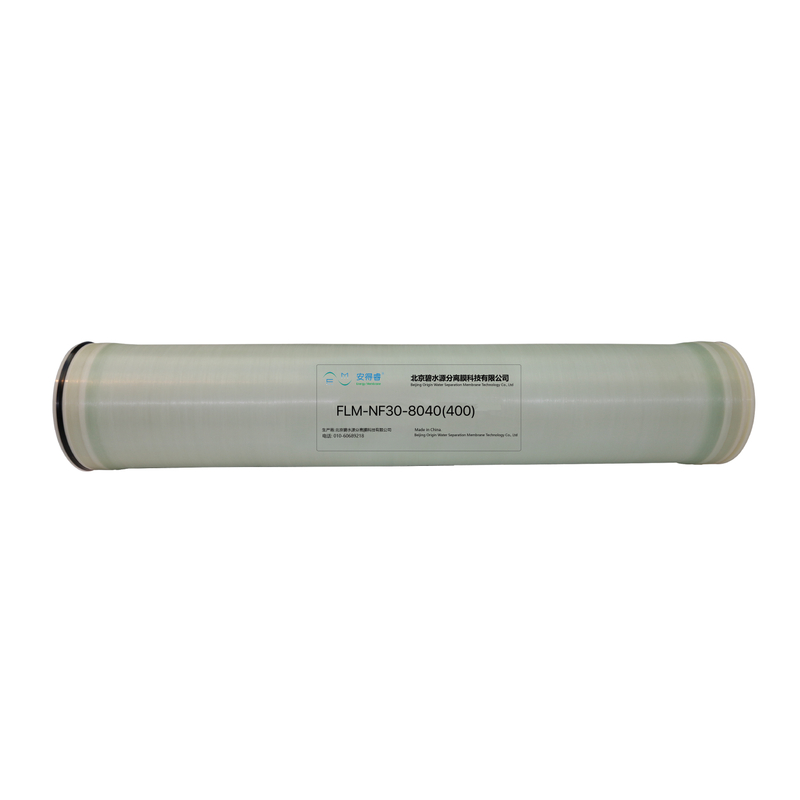

FLM-NF30-8040 (400)
Beijing Origin Water Co., Ltd
The NF30 series industrial low pressure NF membrane elements are specifically designed for removing TOC, THM and MOPs. The products have a high removal rate of emerging pollutants (PPCPs, EDCs, POPs) and high permeability for dissolved inorganic salts, feature with a high systematically comprehensive performance under ultra-low operating pressure, low energy consumption and lower operating cost, which are fit for the applications of potable water supply and other areas.
Products Features
Selectivity: efficient removal of MOPs such as endocrine disturbance, antibiotics, disinfection by-products in water with appropriate desalination, and retention of minerals;
High system recovery rate: can reach up to 80-90%;
Low operating pressure: between 0.3-0.5 MPa, 30% less than conventional membrane;
Low operation cost: large water production, low desalination rate, less chemical consumption, low operating energy consumption.
Performance Parameters
Model | Average Flux GPD（m3/d） | Stable Salt Rejection Rate/% | Effective Membrane Area/ft²(m2) | Feed Spacer Thickness/mil |
FLM-NF30-8040 (400) | 9000 (34.0 ) | 97.00 | 400（37） | 31 |
1.Note: individual element permeate productivity may vary ± 20%.
2.Test conditions: pressure:70psi(0.48MPa), temperature: 25℃, 2000ppmMgSO4, recovery rate 15%、pH 7.5-8.0.
Element Dimensions
Model | A | B | C |
FLM-NF30-8040(400) | 40.0 (1016) | 1.125 (29) | 7.9 (201) |
