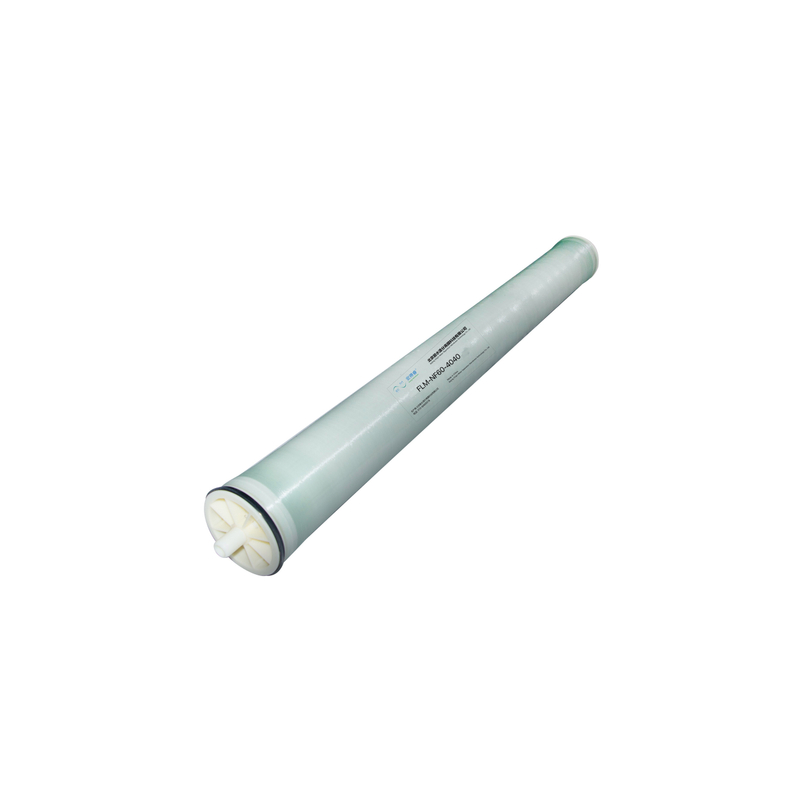

FLM-NF60-4040
Beijing OriginWater Co.,Ltd.
NF60 series industrial salt separation NF membrane elements selectively permeate dissolved inorganic salts. They have a high monovalent ion permeability, and high retention rates of divalent ion and COD, facilitating the separation of high concentrated salt solution. Typical applications include material concentration separation, salt separation, reclaimed water reuse, and (near) zero discharge, etc.
Product Features
High selective separation: high rejection rate of divalent ion and high permeability rate of monovalent ion;
Low operational energy consumption: surface decoration technology enables the RA layer to be more even, smooth, and stronger fouling resistance;
Long term stable operation: fully automatic casting, coating and rolling production lines ensure the uniform performance of products, and more stable operation.
Performance Parameters
Model | Average Flux GPD（m3/d） | Stable Salt Rejection Rate/% | Effective Membrane Area/ft²(m2) | Feed Spacer Thickness/mil |
FLM-NF60-4040 | 1500 (5.7) | 97.50 | 85（8.0） | 31 |
1. Note: individual element permeate productivity may vary ± 20%.
2. Test conditions: pressure:70psi(0.48MPa), temperature: 25℃, 2000ppmMgSO4, recovery rate 15%、pH 7.5-8.0.
Element Dimensions
