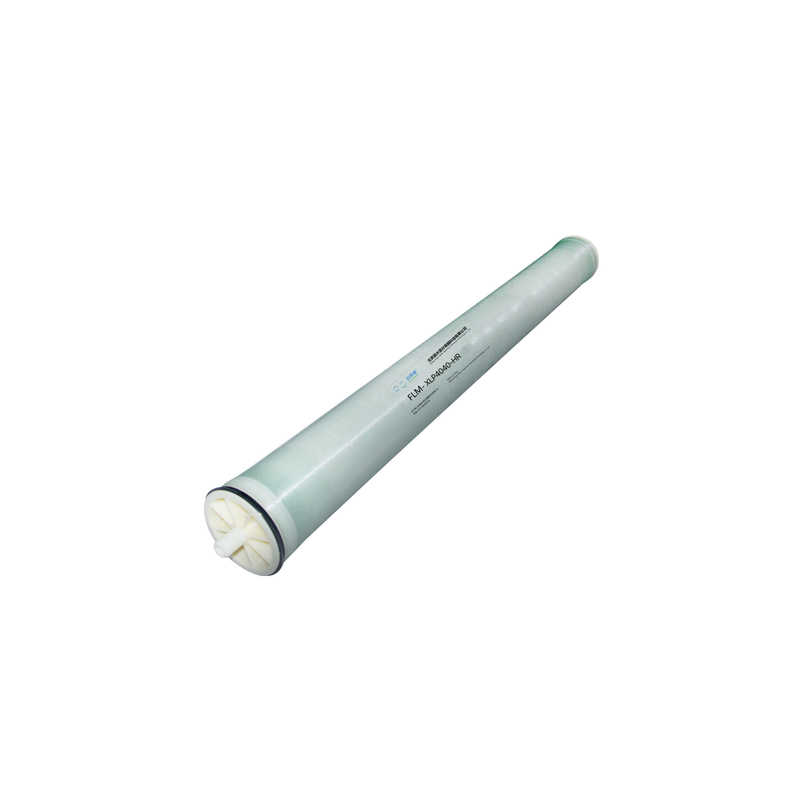

FLM-XLP4040-HR
Beijing OriginWater Co.,Ltd.
XLP series industrial extra low pressure RO membrane elements are suitable for desalination and advanced treatment of brackish water, surface water and tap water with TDS levels up to 1000ppm. The extremely low operating pressure can bring customers better systematic performance and economic benefits.
Products Features
Ultra-large water production: yield water production under extremely low pressure, saving area and cost for water purification manufacturers;
Low operating costs: save energy, greatly save system operating costs;
Drinking water safety: ensure the safety of drinking water, suitable for advanced treatment of surface water and tap water.
Performance Parameters
Model | Average Flux GPD（m3/d） | Stable Salt Rejection Rate/% | Effective Membrane Area/ft²(m2) | Feed Spacer Thickness/mil |
FLM-XLP4040-HR | 2600（9.8） | 99.20 | 85（8） | 28 |
1. Note: individual element permeate productivity may vary ± 15%.
2. Test conditions: pressure: 100psi(0.69MPa), temperature: 25℃, 500ppmNaCI, recovery rate 15%、pH 7.5-8.0.
Element Dimensions
