-I-6; -II-6; -II-8
OriginWater
Overview:

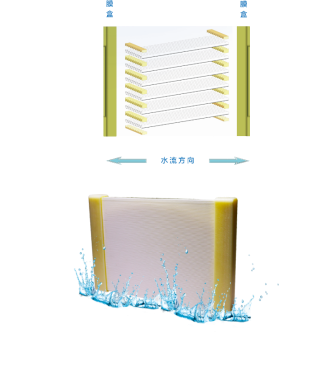

The fexible sheet membrane module has hihger packing density, larger membrane area and lower energy consumption per unit volume; the membrane of its independent water production channel can be back washed and has a strong self-rehabilitation capability. The product has premium production quality and can be simply operated and maintained.
The product can be applied in municipal/industrial effluent water treatment, medical waste water and high concentrated organic waste water treatment fields, which can effectively avoid leakage problem of suspended solids occurred in conventional sedimentation separation process, and greatly remove colon bacillus, algae and other organics to ensure the premium water production quality.
Features:
Extreme Thin and Lighe; Simple for Installation;
High Packing Density; Larger Membrane Area and Lower Energy Consumption;
Independent Water Production Channel; Strong Self-rehabilitation Function;
Sheeting Structure; Strong Tensile Strength; No Hair and Fiber Stagnated;
Gradient Pore Distribution; Strong Anti-fouling Performance;
Prameters:
| Item | Unit | Specifications | |||
| Model | -- | -I-6 | -II-6 | -II-8 | |
| Membrane Area | m2 | 9 | 11 | 15 | |
| Materia | Membrane | -- | PVDF | ||
| Sealant Resin | -- | Epoxy Resin | |||
| Housing | -- | ABS | |||
| MF Membrane Pore Diameter | μm | 0.1 | 0.1 | 0.1 | |
| Dimension | mm | 1220*760*44 | 1500*760*44 | 1500*760*44 | |
| Dry Weight | kg | 7 | 8.1 | 9.6 | |
| Wet Weight | kg | 11 | 13 | 18 | |
Note: Customized orders can be taken by the company.
Operation Conditions:
| Item | Unit | Ref. |
| Filtration Mode | -- | Negtive Pressure Suction |
| Transmembrane Pressure Difference Limits | kPa | ＜60 |
| Max. Transmembrane Pressure Difference | kPa | ＜35 |
| Temperature Range | ℃ | 5~35 |
| Designed Operation Flux | L/m2·h | 18~25 |
| pH Range for Cleaning | -- | 2~11 |
| pH Range for Operation | -- | 6~9 |
| MLSS Range | mg/L | 3000~15000 |
| Back Wash Pressure | kPa | ＜40 |
Note: operation flux is subject to quality of feed and designed conditions.
Applications:
Municipal Effluent water treatment and reuse;
Medical Waste Water treatment;
Industrial Effluent water treatment;
High Concentrated organic waste water treatment.
