Hollow Fiber Microfiltration Membrane Module (RF Series)

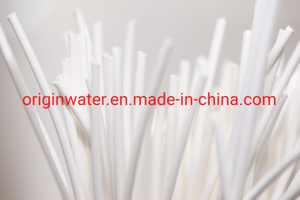

Hollow Fiber Microfiltration Membrane Module, as the core component of MBRU(Membrane Bioreactor Unit), is composed of the fiber reinforced microfiltration (RF) membrane that is self-developed by OriginWater. The membrane, featured with special cross-sectional structure with gradient network and uniform surface pore size distribution, is one of the significant achievements in Major Science and Technology Program for Water Pollution Control and Treatment during “the 12th Five-Year Plan”. Due to its world-class performance, it has been awarded with the Beijing Invention Patent Award and the China Patent Award
  • originwater

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Advantage

High effluent quality  Uniform membrane pore sizedistribution, high filtration precision,effluent turbidity lower than 1NTU;

Strong fouling resistance  Due to the special cross-sectional structure with gradient network and highly smooth membrane surface, the membrane has excellent anti-fouling performance, and is easy to be cleaned and recovered;

Easy operation and maintenance  Due to excellent hydrophilicity by the blending modification technology, the membrane can be preserved at dry state, and it is easy to be stored, transported, handled during cleaning and maintainance;

Long service life  Due to the membrane producing technology of fiber reinforced composite, the tensile strength of the membrane is more than 200N and the life is more than 5 years.

Specification1713402847522

Note: Design flux is determined by the water temperature and water quality conditions.

1713402992714

Notes: (1) The membrane module supporting rod material is SUS304, and the pouring sealant material is PU;
            (2) Special specification can be customized.

Application

1713403141324
