RF-IV
Beijing Origin Water Co., Ltd

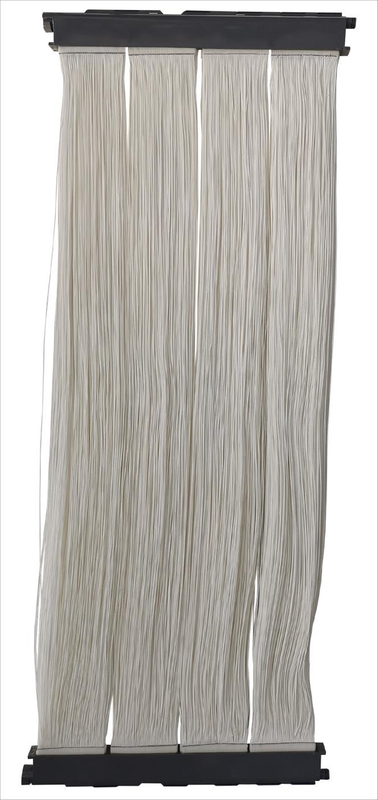

Hollowed Fiber Microfiltration Membrane Modular Type-IV is the core components of S-MBRU. The product is made of reinforced membrane developed by Beijing OriginWater Technology Co., Ltd independently. The membrane of the product has a special gradient grid of pore structure evenly distributed on the membrane, and the modular adopts design of open flow channel that has a better anti-fouling performance.
Product Features:
High Quality of Permeated Water: the apertures of membrane are evenly distributed to allow the membrane has a higher finess of filtration, the turbidity of outlet is less than 1NTU;
Strong fouling resistance: the special cross-sectional structure with gradient network and highly smooth membrane surface enables the membrane to be guarded by excellent anti-fouling performance, and easy to be cleaned and recovered;
Simple installation and maintenance: embrane and cabinet are integrated with positioning rod, simple for installation and dismantle;
Long service life: the tensile strength of the membrane is more than 20N, and the life expectancy is more than 5 years owing to the membrane producing technology of fiber reinforced composite.
Specifications:
| Membrane Material | PVDF | Type | Hollowed Fiber Membrane Modular |
| ID/OD | 1.0/2.0 mm | Pore Size | 0.1 μm |
| Tensile Strength | >200 N | Effluent Turbidity | <1 NTU |
| Design Flux | 18~25 LMH | Temperature* | 10~35 ℃ |
| Maximum pH Range | 2~12 | Recommended pH Range | 6~9 |
| Max Transmembrane Pressure | 45 kPa | Transmembrane Pressure Upper Limit | 85 kPa |
Note: *Design flux is determined by the water temperature and water quality conditions.
| Model | Membrane Area （m2 /sheet） | Length（mm） | Weight（kg/sheet） | Dimension（mm） |
| RF-IV-1-A | 35 | 1938 | 17 | 2138×850×49 |
Note: Special order can be made according to customer's requirements.
Applications:
urban waste water treatment and recycling (new built or reconstruction. No additional land required for reconstruction to achieve capacity expension or upgrading);
waste water treatment in industrial park;
rural high standard waste water treatment;
hospital waste water treatment;
treatment of waste water similar to rural waste water quality.
