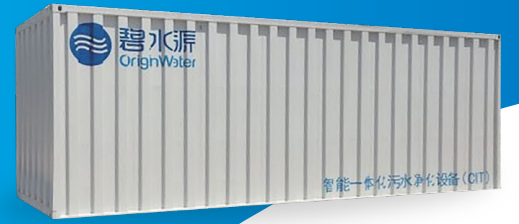

ICWT-B
Beijing Origin Water Co., Ltd
Type ICWT-B product is mainly used for higher effluent requirements for ammonia nitrogen and organic matters but no strict requirement of TN removal. Adopting O-MBR process, the product is to reach efficient removal of ammonia nitrogen and organic matters. The product is a fusion of two second prizes of National Science And Technology Progress Award, including “Membrane integrated wastewater deep purification technology” and “New technology of low energy consumption MBR wastewater recycling”. The effluent quality meets the water quality standard for urban sewage reuse and the Reuse of Urban Recycling Water-Water Quality Standard for Urban Miscellaneous Water Consumption (GB18920-2002).
Advantage
Stability: Excellent and stable effluent water quality;
Integration: Highly integrated equipment, small footprint, easy to be transported;
Modularization: Arbitrarily combined in the functional area, and quick to be installed;
Intelligent: APP intelligent control, remote monitoring.
| Type | Ground Systems | Under Ground Systems | ||||
| Capacity (m3/d) | Dimension Length*Width*Height (m) | Installed Power (kw) | Reaction Tank 1# Length*Width *Height（m） | Control Unit (m) | Installed Power (kw) | |
| ICWT-B-100 | 100 | 3.5×2.5×3.0 | 7.12 | 2.3×2.5×3.6 | 3.4×1.1×1.5 | 7.12 |
| ICWT-B-200 | 200 | 5.7×2.5×3.0 | 9.96 | 4.5×2.5×3.8 | 2.2×2.1×2.1 | 9.96 |
| ICWT-B-300 | 300 | 8.4×2.5×3.0 | 11.91 | 6.7×2.5×3.8 | 2.2×2.1×2.1 | 11.91 |
| ICWT-B-500 | 500 | 14×2.5×3.0 | 14.25 | 11.2×2.5×3.8 | 2.2×2.1×2.1 | 14.25 |
Note: (1) The voltage is 380V and the noise is 55-70dB;
Application:
Villages/villa/ residential area;
Scenic spot/ ecological park;
School/hospital/ office building;
Expressway service area;
Emergency decontamination/black and smelly water.
Economic Indicator
| Type | Investment (Ten thousand yuan/m3) | Operation Cost (yuan/ m3) |
| ICWT-B-100 | 0.35~0.5 | 0.65~0.75 |
| ICWT-B-200 | 0.25~0.35 | 0.55~0.65 |
| ICWT-B-300 | 0.23~0.3 | 0.45~0.55 |
| ICWT-B-500 | 0.2~0.25 | 0.35~0.45 |
Notes: (1) The economic indicator refers to the ICWT system only; (2) Direct operating cost includes electric charge and chemical cost; the electricity price of electrical degree is calculated as RMB 0.6/(kW·h); (3) The general pretreatment includes influent tank, preliminary sedimentation tank, regulation tank and corresponding supporting equipment, etc., and the investment is about RMB 1,500~5,500/m3 according to different scales and construction standards.
