MWD-
OriginWater
Overview:
The product is highly integrated because of the combination of its industiral and hydromechanic design. Modulization and intelligence of the product allow it to be more convinent and simple for transportation and installation, and need no designated staff for watching.

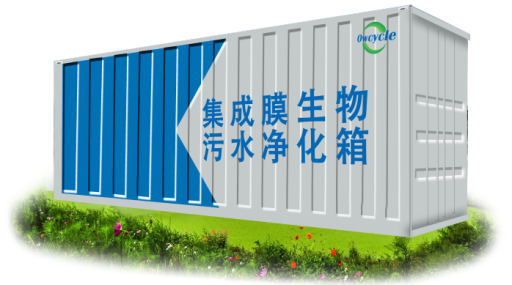

The integrated sewage biological sewage membrane purification device is an integration of pulse areation, airlift circulation, and adopts single stage/ multiple stages AO-MBR coupling. The device has two types that are above ground and burried type, which is fully compatible with activated sludge process and membrane separation technology to be adapt for areas that have high requirements of discharge standards.
The water production quality can fulfill requirements of IV class in Environmental Quality Standards of Surface Water(GB3838-2002).
Applications:
emergent interception of sewage;
black and odorous water treatment;
organic waste water treatment;
rural and urban waste water treatment;
ecological park and scenic spots waste water treatment;
schools and office buildings waste water treatment;
Product Features:
maintenance free;
high efficiency and energy saving;
small footprint;
simple installation;
remote control;
convinent transportation.
Specifications:
Treatment Capacity (t/d) | MWD-A | MWD-A(U) | ||||||
Model | Container Size （m） | Installed capacity （kW） | Energy Consumption （kW·h/t） | Model | Container Size （m） | Installed Capacity （kW） | Energy Consumption （kW·h/t） | |
500 | MWD-A-500 | 11×2.5×3.0 14×2.5×3.0 | 15.29 | 0.44 | MWD-A-500（U） | 11×2.5×3.0 11×2.5×3.0 2.2×2.0×2.1 | 15.29 | 0.44 |
400 | MWD-A-400 | 8.7×2.5×3.0 12×2.5×3.0 | 15.29 | 0.55 | MWD-A-400（U） | 9×2.5×3.0 9×2.5×3.0 2.2×2.0×2.1 | 15.29 | 0.55 |
300 | MWD-A-300 | 15.5×2.5×3.0 | 11.71 | 0.57 | MWD-A-300（U） | 13.2×2.5×3.0 2.2×2.0×2.1 | 11.71 | 0.57 |
200 | MWD-A-200 | 10.5×2.5×3.0 | 9.38 | 0.66 | MWD-A-200（U） | 8.8×2.5×3.0 2.2×2.0×2.1 | 9.38 | 0.66 |
100 | MWD-A-100 | 5.9×2.5×3.0 | 7.35 | 1.11 | MWD-A-100（U） | 4.6×2.5×3.0 3.4×1.3×1.8 | 7.35 | 1.11 |
50 | MWD-A-50 | 4.2×2×3.0 | 6.02 | 1.77 | MWD-A-50（U） | 3×2×3.0 3×1.2×1.5 | 6.02 | 1.77 |
30 | MWD-A-30 | 3.4×2×2.3 | 3.58 | 1.78 | MWD-A-30（U） | 2.4×2×3.0 2.5×1.2×1.3 | 5.08 | 2.62 |
20 | MWD-A-20 | 2.75×1.5×2.3 | 2.67 | 1.91 | MWD-A-20（U） | 2.2×1.5×2.3 2.5×1.2×1.3 | 4.17 | 3.14 |
10 | MWD-A-10 | 2.1×1.3×2.3 | 1.85 | 2.44 | MWD-A-10（U） | 1.5×1.3×2.3 2.1×1.2×1.2 | 3.35 | 4.96 |
Treatment Capacity (t/d) | MWD-B | MWD-B(U) | ||||||
Moel | Container Size（m） | Installed Capacity （kW） | Energy Consumption (kW·h/t） | Model | Container Size（m） | Installed Capacity （kW） | Energy Consumption （kW·h/t） | |
500 | MWD-B-500 | 14.2×3×3.0 3.5×2.5×3.0 | 10.94 | 0.37 | MWD-B-500（U） | 14.2×3×3.0 2.2×2.0×2.1 | 10.94 | 0.37 |
400 | MWD-B-400 | 13.8×2.5×3.0 3.5×2.5×3.0 | 10.94 | 0.46 | MWD-B-400（U） | 13.8×2.5×3.0 2.2×2.0×2.1 | 10.94 | 0.46 |
300 | MWD-B-300 | 12.6×2.5×3.0 | 8.19 | 0.46 | MWD-B-300（U） | 10.4×2.5×3.0 2.2×2.0×2.1 | 8.19 | 0.46 |
200 | MWD-B-200 | 8.9×2.5×3.0 | 5.94 | 0.50 | MWD-B-200（U） | 7×2.5×3.0 2.2×2.0×2.1 | 5.94 | 0.50 |
100 | MWD-B-100 | 5.1×2.5×3.0 | 4.89 | 0.82 | MWD-B-100（U） | 3.6×2.5×3.0 3.4×1.3×1.8 | 4.89 | 0.82 |
50 | MWD-B-50 | 3.5×2.0×3.0 | 3.59 | 1.21 | MWD-B-50（U） | 2.3×2×3.0 3×1.2×1.5 | 3.59 | 1.21 |
Treatment Capacity (t/d) | MWD-C | MWD-C(U) | ||||||
Model | Container Size（m） | Installed Capacity（kW） | Energy Consumption （kW·h/t) | Model | Container Size （m） | Installed Capacity （kW） | Energy Consumption （kW·h/t） | |
500 | MWD-C-500 | 15.5×3×3.0 | 10.69 | 0.36 | MWD-C-500（U） | 12.7×3×3.0 2.2×2.0×2.1 | 10.69 | 0.36 |
400 | MWD-C-400 | 13×3×3.0 | 10.69 | 0.45 | MWD-C-400（U） | 10.2×3×3.0 2.2×2.0×2.1 | 10.69 | 0.45 |
300 | MWD-C-300 | 11.2×2.4×3.0 | 7.94 | 0.44 | MWD-C-300（U） | 9.7×2.4×3.0 2.2×2.0×2.1 | 7.94 | 0.44 |
200 | MWD-C-200 | 7.8×2.4×3.0 | 5.69 | 0.48 | MWD-C-200（U） | 6.5×2.4×3.0 2.2×2.0×2.1 | 5.69 | 0.48 |
100 | MWD-C-100 | 5.1×2.0×3.0 | 4.64 | 0.78 | MWD-C-100（U） | 4×2.0×3.0 3.4×1.3×1.8 | 4.64 | 0.78 |
Treatment Capacity (t/d) | MWD-D | MWD-D(U) | ||||||
Model | Container Size（m） | Installed Capacity （kW） | Energy Consumption （kW·h/t | Model | Container Size （m） | Installted Capacity（kW） | Energy Consumption （kW·h/t） | |
500 | MWD-D-500 | 10.4×2.4×3.0 | 9.19 | 0.31 | MWD-D-500（U） | 8.6×2.4×3.0 | 9.19 | 0.31 |
400 | MWD-D-400 | 8.7×2.4×3.0 | 9.19 | 0.39 | MWD-D-400（U） | 6.9×2.4×3.0 | 9.19 | 0.39 |
300 | MWD-D-300 | 6.5×2.4×3.0 | 7.19 | 0.40 | MWD-D-300（U） | 5.2×2.4×3.0 | 7.19 | 0.40 |
200 | MWD-D-200 | 4.5×2.4×3.0 | 4.94 | 0.41 | MWD-D-200（U） | 3.5×2.4×3.0 | 4.94 | 0.41 |
100 | MWD-D-100 | 3.1×2.0×3.0 | 4.24 | 0.71 | MWD-D-100（U） | 2.2×2.0×3.0 | 4.24 | 0.71 |
50 | MWD-D-50 | 2×2.0×3.0 | 2.94 | 0.99 | MWD-D-50（U） | 1.2×2.0×3.0 | 2.94 | 0.99 |
Remarks: 1. the products have two types that are above ground and burried type, data in the table above represents the primary parameters, and the energy consumption refers to the operation energy consumption which does not include pre-treatment part and feeding water lift part.
