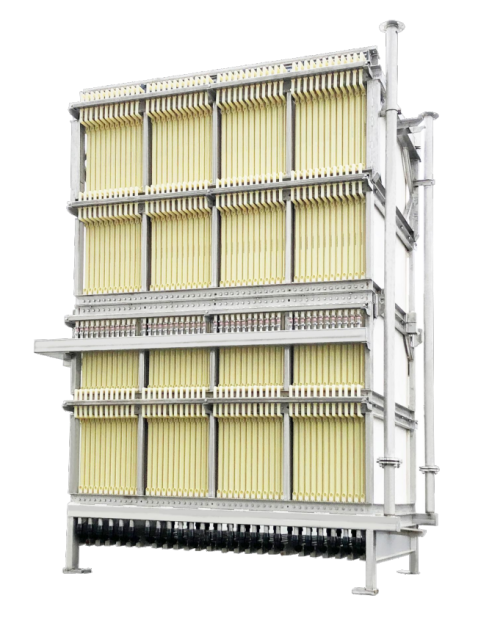

MBR-C can be largely applied in various scaled water treatment projects of municipality and industries. The unit adopt High-Low aeration combined mode, optimized water collection and air distribution systems to reduce internal resistance and blind angel of circulation; the units strengthen the hydraulic power to achieve long stable operation under low operation conditions, and uses modular design to increase flexibility, operation flux, and improve permeation quality.
Product Feature
Premium Permeate Quality;
Strong Fouling Resistance Performance;
Long Service Life;
Low Energy Consumption;
Small Footprint.
Applications
Urban Sewage Treatment and Utilization, Industrial Waste Treatment (No additional land required for new building or reconstruction to fulfill capacity expansion);
Industrial wastewater Treatment;
Rural Sewage Treatment;
Hospital Waste Water Treatment;
Solid-liquid Separation for other sewage.
Specifications
Material | PVDF | Module Form | Flat |
MF Pore Diameter | 0.1μm | Turbidity | ＜1NTU |
Av. Designed Flux* | 18~25LMH | Air to Water Ratio | 6~9 |
Operation Temperature | 5~35℃ | MLSS | 3~15g/L |
Max.pH | 2~12 | Rec. Operation pH | 6~9 |
Max.TMP | 35KPa | Ultimate TMP | 60KPa |
Note: Designed flux is subject to water temperature and conditions.
Unit Model | Capacity （m³/d） | Model Qty (module) | Area (m2/set) | Dimension (mm) |
MBR-C-1000 | 1000 | 123 | 1980 | 2580*1800*3100 |
MBR-C-300 | 300 | 54 | 594 | 1750*1800*2260 |
MBR-C-200 | 200 | 36 | 396 | 2000*1150*2260 |
MBR-C-50 | 50 | 11 | 99 | 1720*760*1480 |
Note: unit primary material is SUS304; special order can be made.
