MBR-C
OriginWater

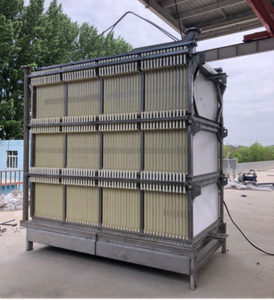

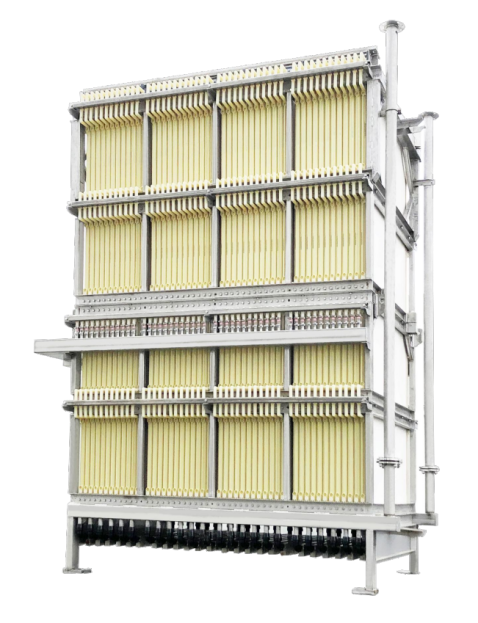

MBR-C can be largely applied in various scaled water treatment projects of municipality and industries. The unit adopt High-Low aeration combined mode, optimized water collection and air distribution systems to reduce internal resistance and blind angel of circulation; the units strengthen the hydraulic power to achieve long stable operation under low operation conditions, and uses modular design to increase flexibility, operation flux, and improve permeation quality.
Product Features:
Premium Permeate Quality;
Strong Fouling Resistance Performance;
Long Service Life;
Low Energy Consumption;
Small Footprint.
Applications:
Urban Sewage Treatment and Utilization, Industrial Waste Treatment (No additional land required for new building or reconstruction to fulfill capacity expansion);
Industrial wastewater Treatment;
Rural Sewage Treatment;
Hospital Waste Water Treatment;
Solid-liquid Separation for other sewage.
Specifications:
Material | PVDF | Module Form | Flat |
MF Pore Diameter | 0.1μm | Turbidity | ＜1NTU |
Av. Designed Flux* | 18~25LMH | Air to Water Ratio | 6~9 |
Operation Temperature | 5~35℃ | MLSS | 3~15g/L |
Max.pH | 2~12 | Rec. Operation pH | 6~9 |
Max.TMP | 35KPa | Ultimate TMP | 60KPa |
Note: Designed flux is subject to water temperature and conditions.
Unit Model | Capacity （m³/d） | Model Qty (module) | Area (m2/set) | Dimension (mm) |
MBR-C-1000 | 1000 | 123 | 1980 | 2580*1800*3100 |
MBR-C-300 | 300 | 54 | 594 | 1750*1800*2260 |
MBR-C-200 | 200 | 36 | 396 | 2000*1150*2260 |
MBR-C-50 | 50 | 11 | 99 | 1720*760*1480 |
Note: unit primary material is SUS304; special order can be made.
