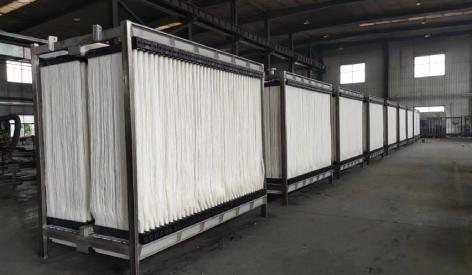

MBR Cassettes with MF/UF PVDF Hollow Fibers

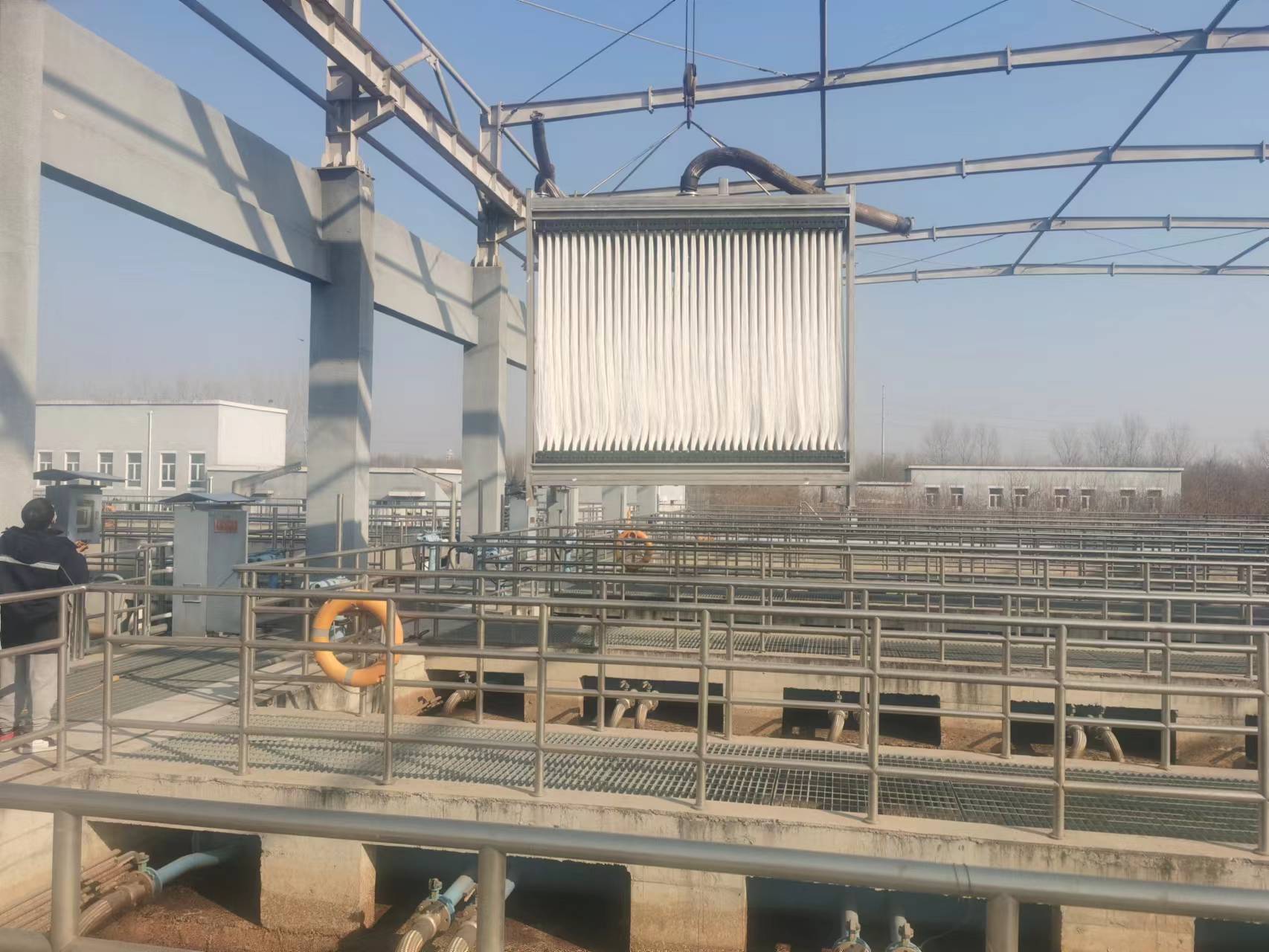

Beijing OriginWater MBR Series can be largely applied in municipal and industrial wastewater treatment of various capacities. It adopts trough type air collection pulse of aeration technology and three-position water collecting technology to have a lower energy consumption for blowing and sweeping; the alternative high shear aeration structure to strength its anti-fouling performance and the unit particular structure to enable the membrane tank to have a high filling density without large hydraulic water cycle. OriginWater MBR has a stable water permeation quality and high operation flux.

The 5 advantages of OriginWater MBRs are energy saving, longer life time, high fouling resistance, high loading density and high flux.

1. Pulse aeration of trough gas collection, high energy saving, gas-water ratio as low as 5:1

The big strong bubbling aeration brushes off sludge captured on membrane surface by sequential pulse physical features, which saves 50% of the energy comparing with conventional perforated tube aeration technology.

2. Special structure of hollow fibers, long life time about 10 years

Gradient pore structure of hollow fibers, high porosity and evenly distributed pores  to allow the fibers to be high flux, fouling resistant and oxidative resistant.

Woven reinforced layer with the fracture stress of over 600N allows with longer life time.

3. Tolerant and resistant to fouling, less hair captured

Automatic comb and aligned fibers to increase fouling resistance and to have less hair captured

Three-point water collective system to improve the uniformity of water distribution and enhance fouling resistant capability

4. Big loading, easy maintenance, no off-line cleaning needed, self -adaptive leveling

Frame featured with high loading density, so smaller footprint needed

Simple structure of module and unit, free of offline cleaning and easy maintenance

Self-adjustment of the leveling, and the trough gas collection minimizes the influence of aeration uniformity

5. High quality hollow fibers, proper structure of module and frame along with sound operation and cleaning process, the frame can work with a high operational flux in sewage

Quality and services

Software: special development and design software and huge applicable data to combine the theory with practice;

R&D: professional R&D team features with membrane material and application development and membrane materials production machinery development;

Automatic production: fast, efficient, precise control and the minimum of human interfere allow the quality to be consistently good;

Quality control: ISO9001 Quality management system, target the highest quality level of the industry;

After sales: technical team for a prompt and professional service.
