CUT-S
OriginWater
Overview:

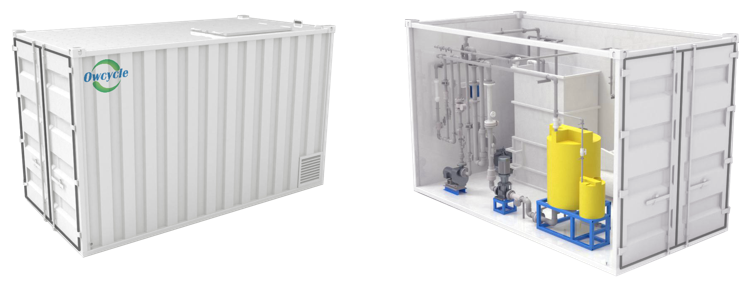

The product adopts submerged ultra-filtration membrane modular of enhanced PVDF hollow fiber membrane ( the company owns the independent intellectual rights) as its core element, combining with opening flow channel unit and integrated aeration structure design, which enables the product to be featured with high output water quality, and highly anti-fouling, etc. The product applies integrated design concept as well, which integrates membrane filtration area and equipment room together, and can be used in scenarios such as various emergent and dispersed regional water supply projects, and effluent water upgrading projects.
Product Features:
High precision of filtration; Premium water productivity; Stable Operation;
High integration; Small foot print; Simple installation and maintenance;
Batch production; Reliable quality; Simple pipeline; Onsite installation;
App controlled; Remote monitor;
Spcifications:
| Model | Treatment Capacity (t/d) | Container Demensions (mm) | Installation Capacity (KW) |
| CUT-S-50 | 50 | 5.5*2.3*3 | 1.62 |
| CUT-S-100 | 100 | 6.5*2.3*3.2 | 1.77 |
| CUT-S-200 | 200 | 7.0*2.3*3.2 | 3.21 |
| CUT-S-300 | 300 | 7.5*2.3*3.2 | 3.91 |
| CUT-S-500 | 500 | 7.8*2.3*3.2 | 5.71 |
| CUT-S-1000 | 1000 | 9.4*2.5*3.2 | 6.11 |
| CUT-S-2000 | 2000 | 9.4*2.9*3.2 | 12.71 |
| CUT-S-3000 | 3000 | 10.7*2.9*3.2 | 16.21 |
| CUT-S-4000 | 4000 | 12.6*2.9*3.2 | 21.71 |
Remarks:
The above listed types are the company’s standard products;
Orders of customized designs based on water quality and volume can be taken by the company;
The above listed types refer to the integrated equipment only. The front end pre-processing is generally composed of coagulative precipitation tank, air floatation tank and regulation tank, etc, sizes of which can be calculated respectively according to the scale and water source type of proposed projects.
