DCJ-6035-Ⅳ
Beijing OriginWater Co.,Ltd.
The submerged cyliner typed UF membrane elements utilize reinforced PVDF hollow fiber Ultrafiltration (UF) membrane. The elements adopt the "immersive negative suction” process, and design a uniform water and air channel, feature in strong fouling resistance, and are suitable for high-quality industrial water treatment, RO pretreatment etc.
Product Features
Good stability: adopt high-strength enhanced fiber and fiber bunching technology, reduce the risk of hollow fiber breakage, fouling resistance and long service life to ensure long-term stability.
Modular design and easy installation: integrated structure of aeration and water collection. The pipeline is simplified, easy to disassemble and assemble, and it is convenient for the reconstruction and expansion for various large-scale water treatment projects.
High effluent quality: high precision with 0.04μm small pore size, better interception performance, higher water quality.
Specifications and Parameters
Model | Membrane area（㎡) | Fiber diameters （mm） | Membrane pore size（μm） | Size （mm) | Transportation weight（kg） |
DCJ-6035-Ⅳ (Motimo） | 35 | 0.7/1.3 | 0.04 | Φ160*1800 | 25 |

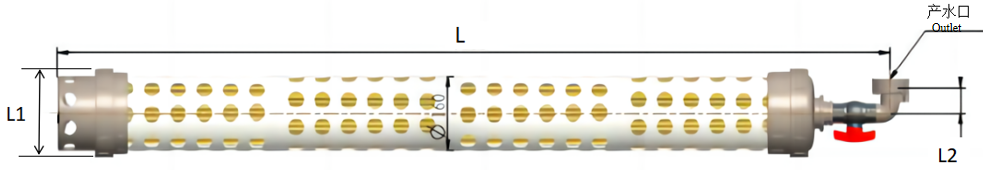

Element Dimensions
| Item | L | L1 | L2 | D | Connection |
| mm | 1800 | 190 | 55.5 | 160 | M65*3 Lock Nut |
*Please note that no violation of intellectual property involved but compatible with Motimo.
