ZC-10060-A (Inge izzer XL 0.9 MB 60W/ ZeeWeed 700B-10060)
Beijing OriginWater Co.,Ltd.
ZC series cylinder typed UF membrane feature in high flux and high hydrophilic. The modules utilize an external pressure structure, which can be operated at the dead end or cross-flow, and can be applied in high-quality water treatment fields such as drinking water treatment, industrial zero discharge, and seawater desalination.
Product Features
Uniform pore size: small pore size, good uniformity and high quality of yield.
Wide range of products: with a variety of product models, can adapt to different performance and size requirements.
Long life service: high-mechanical membrane fiber withstand repeated air flow scrubbing, and has a long life service.
Wide range of application: the structural characteristics let it adapt to the changes in raw water quality, and the water quality has a wide range of applications.
Specifications and Parameters
Model | Effective Membrane Area (m2) | Dimension (mm) | Material | Fiber Diameter (mm) | Nominal Pore Size (um) | Transportation Weight (kg) |
ZC-10060-A (Inge izzer XL 0.9 MB 60W/ ZeeWeed 700B-10060) | 60 | Φ250*1681 | PES (seven-bore) | 0.9/4.0 | 0.025 | 31.5 |

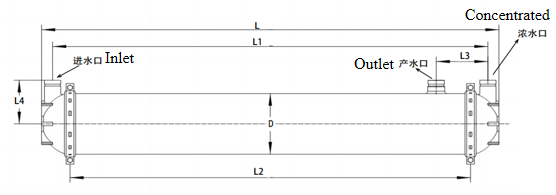

Element Dimensions
Item | L | L1 | L2 | L3 | L4 | D | Inlet | Outlet | Concentrated |
mm | 1687 | 1599 | 1500 | 191 | 179 | 250 | DN50, coupling | ||
*Please note that no violation of intellectual property involved but compatible with Inge izzer XL 0.9 MB 60W/ ZeeWeed 700B-10060.
