ZC-6033-B
Beijing OriginWater Co.,Ltd.
ZC series cylinder typed UF membrane elements adopt a new generation of self-supporting PVDF hollow fiber membrane, feature in high flux and high hydrophilic. The modules utilize an external pressure structure, which can be operated at the dead end or cross-flow, and can be applied in high-quality water treatment fields such as drinking water treatment, industrial zero discharge, and seawater desalination.
Product Features
Uniform pore size: high-precision self-supporting PVDF fiber with small pore size, good uniformity and high quality of yield.
Wide range of products: with a variety of product models, can adapt to different performance and size requirements.
Long life service: high-mechanical membrane fiber withstand repeated air flow scrubbing, and has a long life service.
Wide range of application: the structural characteristics let it adapt to the changes in raw water quality, and the water quality has a wide range of applications.
Specifications and Parameters
Model | Size | Membrane area/㎡ | Transportation weight/KG |
ZC-6033-B | Φ160*1860 | 33 | 25 |

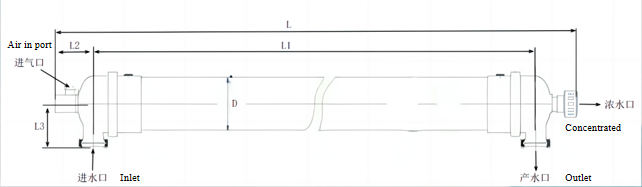

Element Dimensions
Item | L | L1 | L2 | L3 | D | Inlet | Outlet | Concentrated | Air in port |
mm | 1860 | 1610 | 106 | 125 | 160 | DN65-73, coupling | DN32 decree | Rp3/8'' | |
