ZC series cylinder typed UF membrane elements adopt a new generation of self-supporting PVDF hollow fiber membrane, feature in high flux and high hydrophilic. The modules utilize an external pressure structure, which can be operated at the dead end or cross-flow, and can be applied in high-quality water treatment fields such as drinking water treatment, industrial zero discharge, and seawater desalination.
ZC-8077-SL
Beijing OriginWater Co.,Ltd.
ZC series cylinder typed UF membrane elements adopt a new generation of self-supporting PVDF hollow fiber membrane, feature in high flux and high hydrophilic. The modules utilize an external pressure structure, which can be operated at the dead end or cross-flow, and can be applied in high-quality water treatment fields such as drinking water treatment, industrial zero discharge, and seawater desalination.
Product Features
Uniform pore size: high-precision self-supporting PVDF fiber with small pore size, good uniformity and high quality of yield.
Wide range of products: with a variety of product models, can adapt to different performance and size requirements.
Long life service: high-mechanical membrane fiber withstand repeated air flow scrubbing, and has a long life service.
Wide range of application: the structural characteristics let it adapt to the changes in raw water quality, and the water quality has a wide range of applications.
Specifications and Parameters
Model | Size (mm) | Effective membrane area (㎡) | Transportation weight (kg) |
ZC-8077-SL | Φ225*2488 | 77 | 70 |

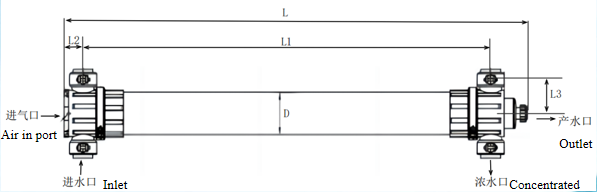

Element Dimensions
Item | L | L1 | L2 | L3 | D | Inlet | Outlet | Concentrated | Air in port |
mm | 2488 | 2189 | 100 | 180 | 225 | DN100, coupling | DN40, decree | DN100, coupling | 3/8” NPT |
