Fouling Resistant Compact 500D MBR Membrane Bioreactors for Decentralized Wastewater Treatment/Municipal Wastewater Treatment/Industrial Wastewater Treatment

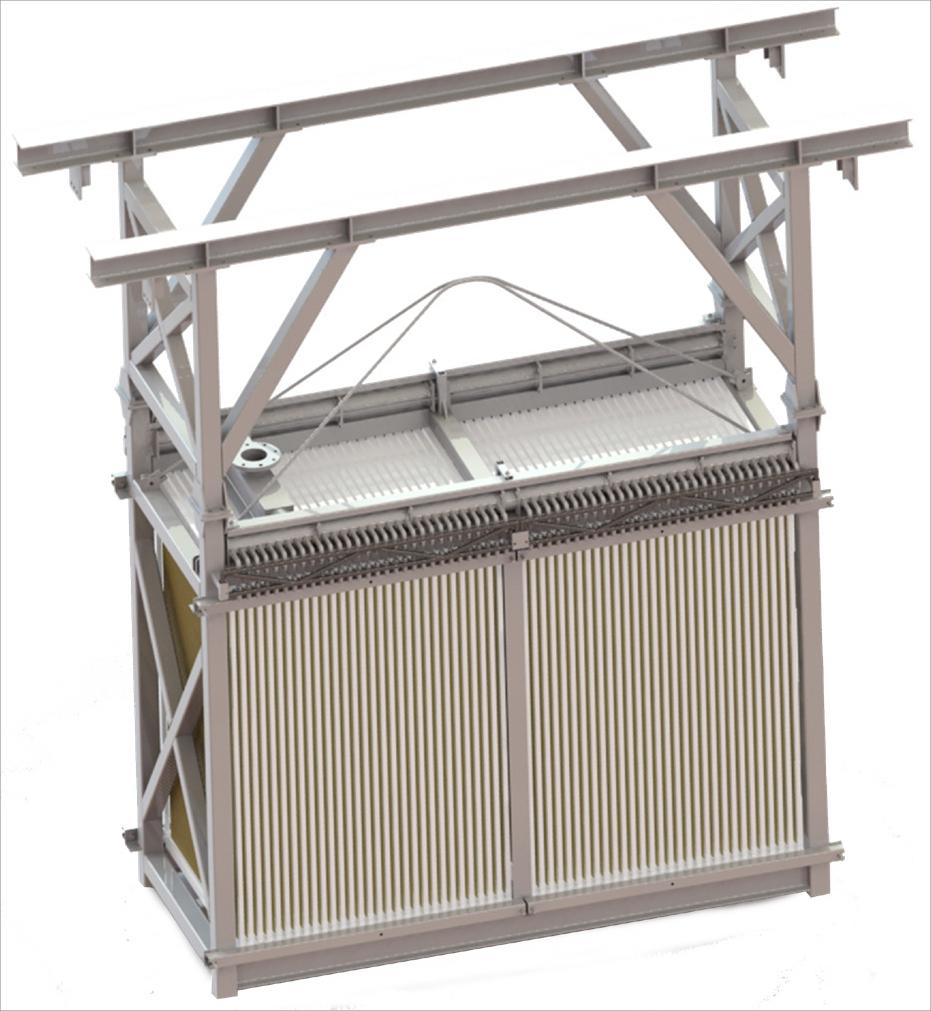

MBR-E, the newly developed suspended save membrane bioreactor frame is the core product that enables MBR technology to further reduce energy consumption. It adopts the patented trough gas collecting pulse aeration technology and three-position water collecting technology, which make the purging energy consumption lower; the interactive high-shear aeration structure is highly fouling resistant; the special internal structure of the unit does not require big hydraulic circulation to make the filling density of the membrane tank higher; the hanging structure is easy to install and makes the frame widely applied.
Product Feartures:
High effluent quality: evenly distributed pores, high filtration accuracy, and effluent turbidity < 1 NTU.
Low operating energy consumption: trough gas collecting pulse aeration and three-position water collecting technology allow the unit purging energy consumption being about 0.1 kWh/m3.
Strong fouling resistant capability: special gradient shaped pore structure and an interactive high-shear aeration structure improves the fouling resistance and has a high chemical cleaning efficiency.
Small footprint: the loading density of the membrane tank is high as 350 m2/m2, and the HRT < 1 h.
Long service life: fiber-reinforced composite membrane technology makes the breaking stress of the fibers > 200 N, and the service life > 5 years.
Widely applied: the hanging structure is easy to install, suitable for a variety of membrane tank situations, and flexible in applications.
Applications:
Urban Sewage Treatment and Utilization, Industrial Waste Treatment (No additional land required for new building or reconstruction to fulfill capacity expansion);
Industrial wastewater Treatment;
Rural Sewage Treatment;
Hospital Waste Water Treatment;
Solid-liquid Separation for other sewage;
Specifications:

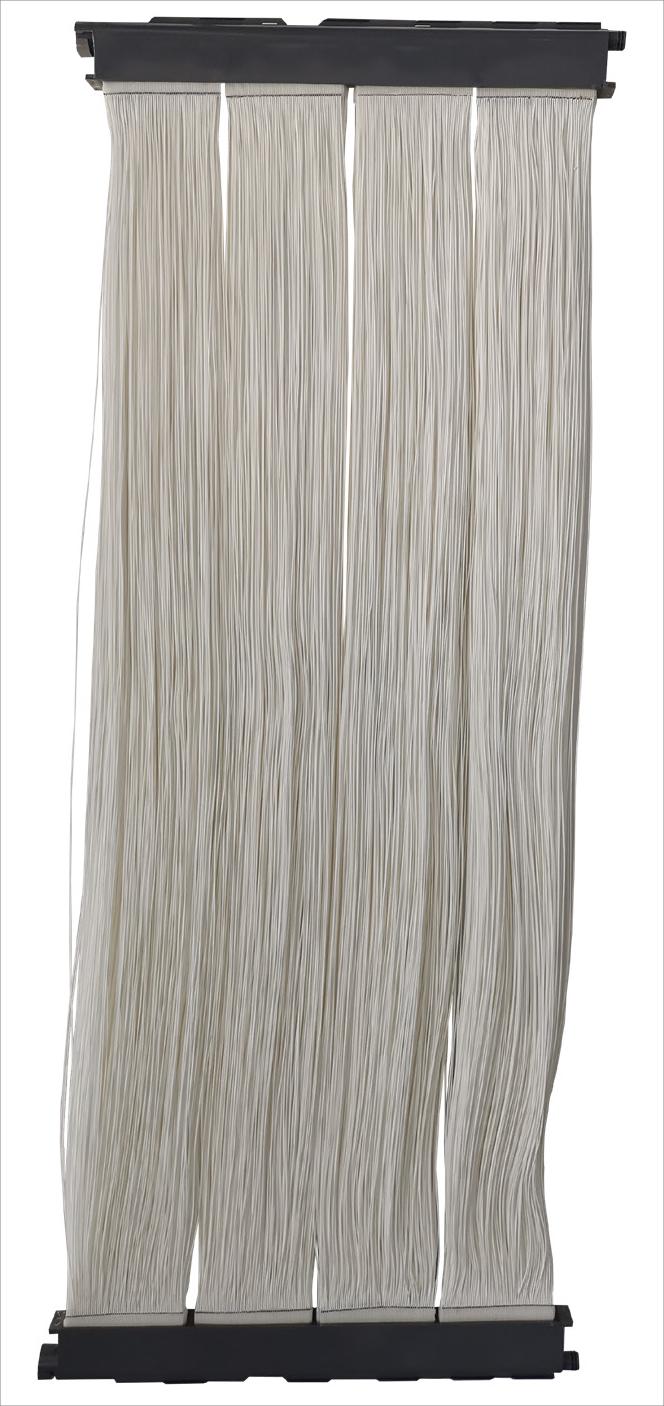

Membrane material | PVDF | Model | Hollow Fiber curtain shaped |
ID/OD of fiber | 1.0/2.0 mm | Pore size | 0.1 μm |
Tensile strength | > 200 N | Effluent turbidity | < 1 NTU |
Effective area | 35 m2/pcs | *Design flux | 18 - 25 LMH |
Purging air-water ratio | (6 - 8) : 1 | Optimized sludge concentration | 6 - 12 g/L |
Temperature* | 10 - 35℃ | Recommended pH | 6 - 9 |
Max TMP | 45 kPa | Extreme TMP | 80 kPa |
Maintenance chemical cleaning period | Once / week | Recovery chemical cleaning period | Once / a |
Note: * design flux is based on temperature and water quality
Model | *Treatment capacity（m3/d） | Number Of Membrane Modules（module） | Dimension（mm） |
XMBRU-800-A | 800 | 52 | 2220 |
Notes：
*Treatment capacity with water temperature of 20℃ and sludge concentration of 8~12g/L;
The unit body material is SUS304;
Special specification and material can be customized
