MBR-E
OriginWater

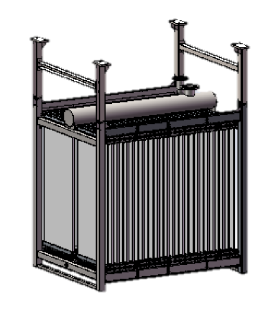

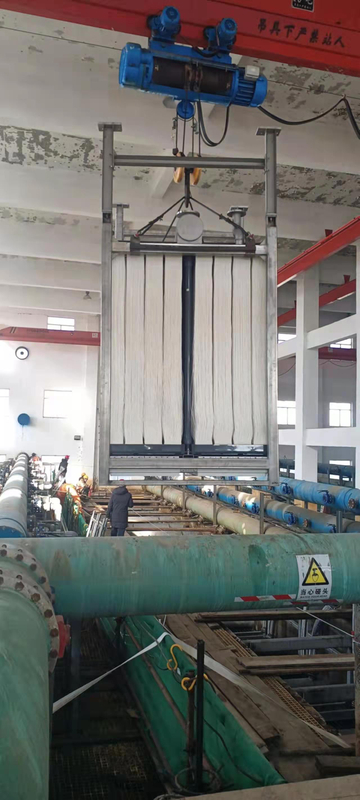

MBR-E, the newly developed suspended save membrane bioreactor frame is the core product that enables MBR technology to further reduce energy consumption. It adopts the patented trough gas collecting pulse aeration technology and three-position water collecting technology, which make the purging energy consumption lower; the interactive high-shear aeration structure is highly fouling resistant; the special internal structure of the unit does not require big hydraulic circulation to make the filling density of the membrane tank higher; the hanging structure is easy to install and makes the frame widely applied.
Product Feartures:
Good Effluent: NTU< 1;
Low Energy Consumption: 0.1 kWh/m3;
Strong Fouling Resistance: gradient network pores;
Smaller Footprint: loading density: 350 m2/m2;
Longer Service Life: 5-8 years with 600N tensile stress at break of fibers.
Applications:
Urban Sewage Treatment and Utilization, Industrial Waste Treatment (No additional land required for new building or reconstruction to fulfill capacity expansion);
Industrial wastewater Treatment;
Rural Sewage Treatment;
Hospital Waste Water Treatment;
Solid-liquid Separation for other sewage;
Specifications:

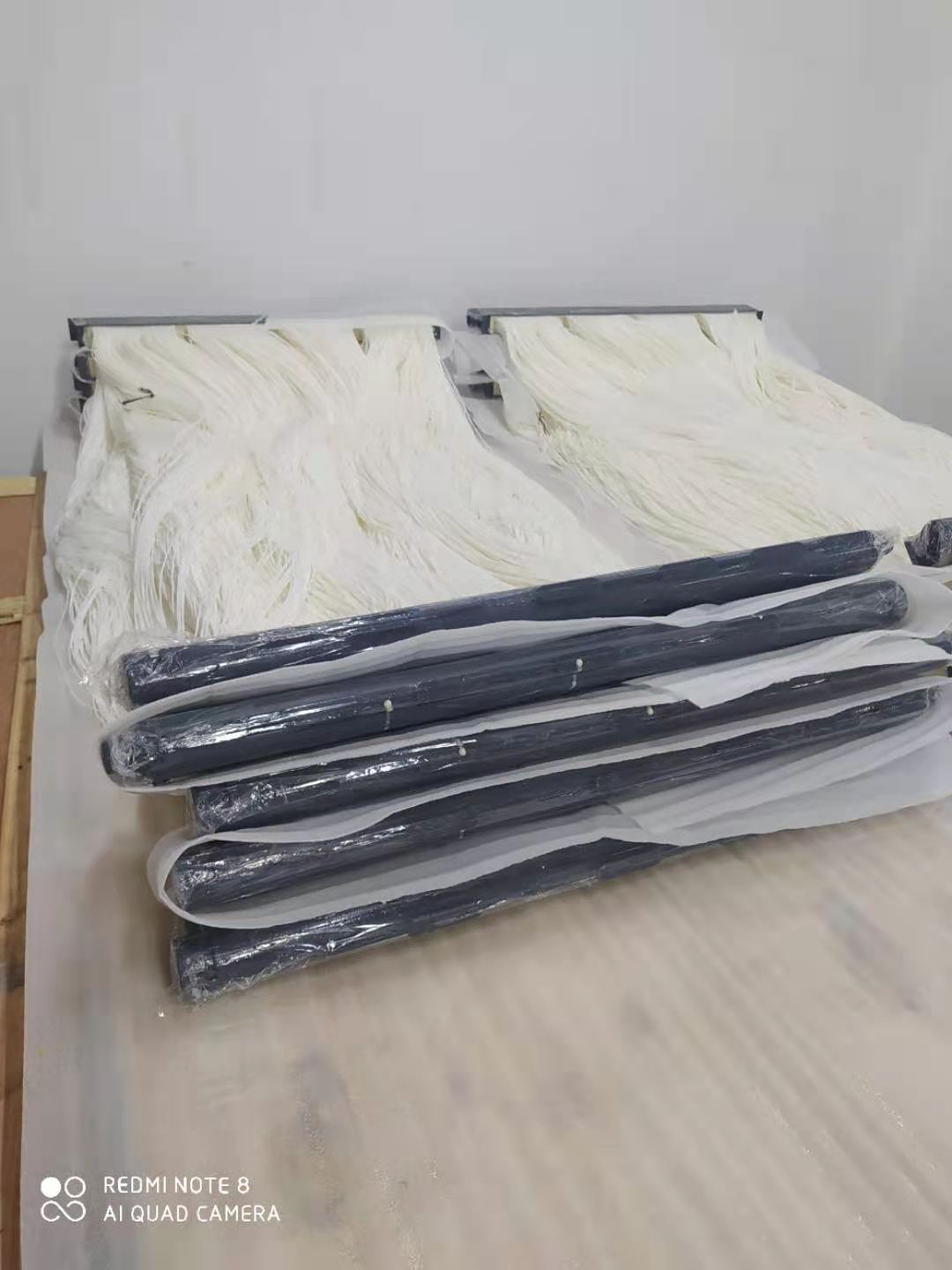

Membrane material | PVDF | Model | Hollow Fiber curtain shaped |
ID/OD of fiber | 1.0/2.0 mm | Pore size | 0.1 μm |
Tensile strength | > 200 N | Effluent turbidity | < 1 NTU |
Effective area | 35 m2/pcs | *Design flux | 18 - 25 LMH |
Purging air-water ratio | (6 - 8) : 1 | Optimized sludge concentration | 6 - 12 g/L |
Temperature* | 10 - 35℃ | Recommended pH | 6 - 9 |
Max TMP | 45 kPa | Extreme TMP | 80 kPa |
Maintenance chemical cleaning period | Once / week | Recovery chemical cleaning period | Once / a |
Note: * design flux is based on temperature and water quality
Model | *Treatment capacity（m3/d） | Number Of Membrane Modules（module） | Dimension（mm） |
XMBRU-800-A | 800 | 52 | 2220 |
Notes：
*Treatment capacity with water temperature of 20℃ and sludge concentration of 8~12g/L;
The unit body material is SUS304;
Special specification and material can be customized
