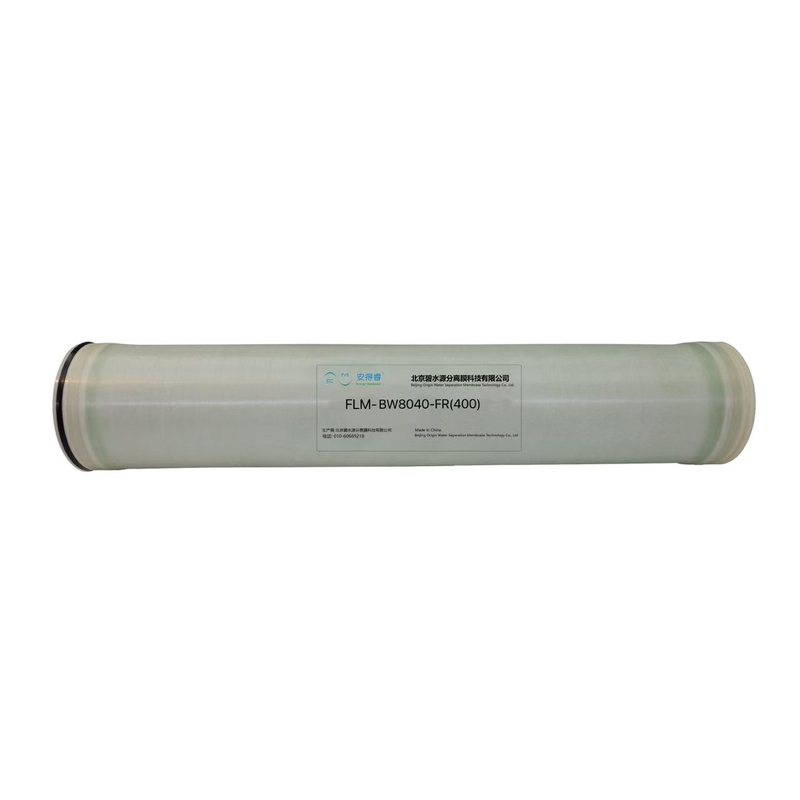

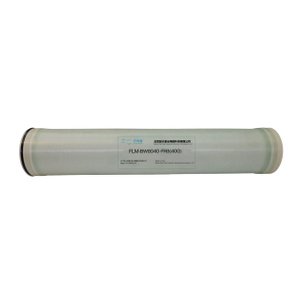

FLM-BW8040-FR(400)
Beijing Origin Water Co., Ltd
BW industrial RO membrane elements adopt the latest processing technology and material to have high salt rejection rate, high water permeation, strong chemical withstanding and excellent anti-fouling performance. The elements fit for the application areas such as brackish water, industrial wastewater treatment and other fields with TDS levels up to 10,000ppm. The products have a large range of cleaning pH value (pH 1-13), which can rapidly address membrane fouling issues.
Product Features
High salt rejection: the standard salt rejection generally reaches above 99.50%, with a maximum of up to 99.80%;
Strong chemical tolerance: the elements can be washed by acid or alkali for multiple times, having longer life expectancy;
Strong fouling resistance performance: the special anti-fouling coating can ensure the sheets work normally under extreme conditions.
Performance Parameters
Model | Average Flux GPD（m²/d） | Stable Salt Rejection Rate/% | Effective Membrane Area/ft²(m2) | Feed Spacer Thickness /mil |
FLM-BW8040-FR(400) | 11000（41.6） | 99.75 | 400（37） | 34 |
1. Note: individual element permeate productivity may vary ±15%.
2. Test conditions: pressure: 225psi(1.55MPa), temperature: 25℃, 2000ppm NaCI, recovery rate 15%, pH 7.5-8.0.
Element Dimensions
