FLM-BW8040-FRB(400)
Home » Products » RO Membranes » Brackish Water » FLM-BW8040-FRB(400)

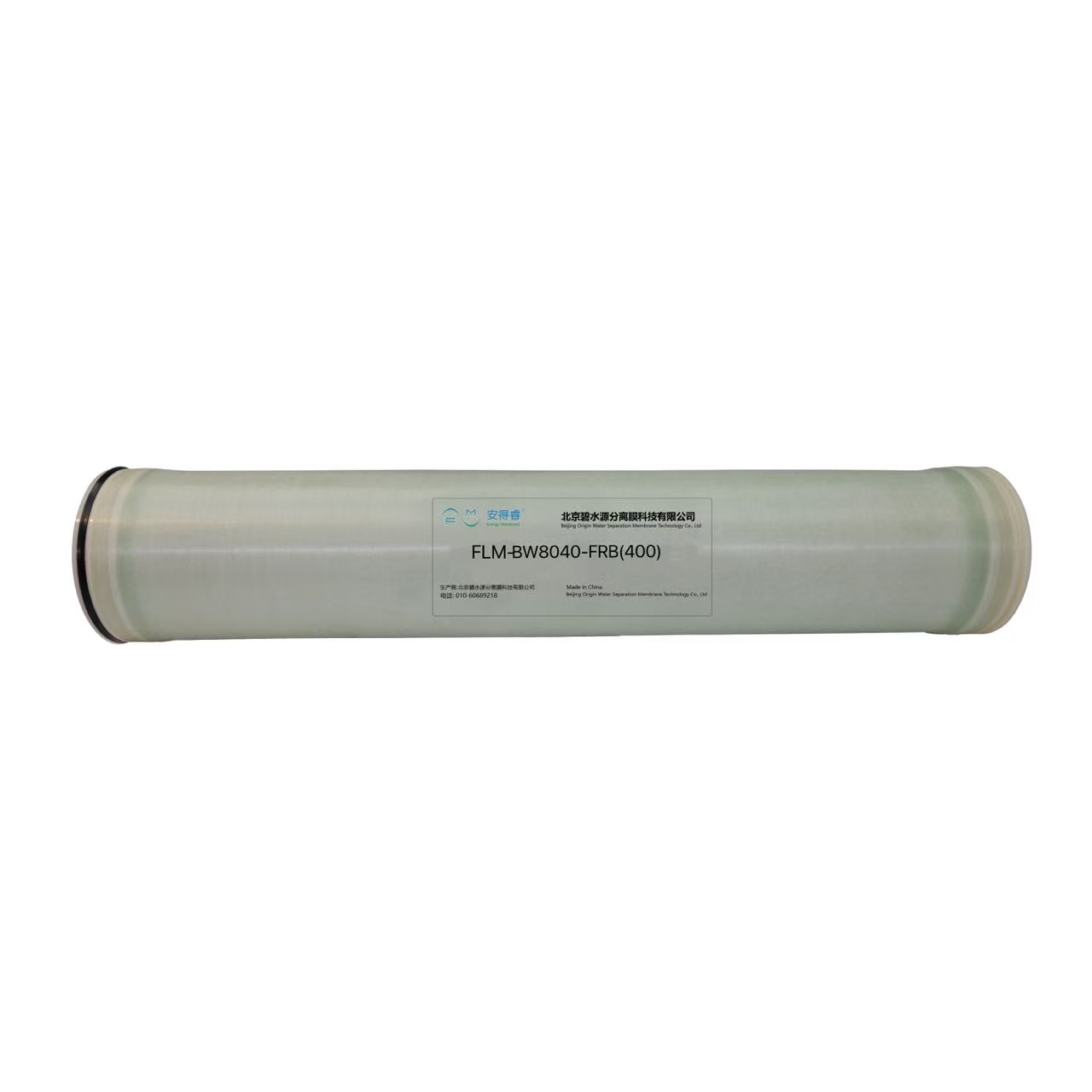

FLM-BW8040-FRB(400)

  • Fouling resistance;
  • High salt rejection;
  • High flux;
  • Suitable for salt concentrations up to approximately 10,000 ppm.
  • FLM-BW8040-FRB(400)

  • Beijing OriginWater Co.,Ltd.

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

BW industrial RO membrane elements adopt the latest processing technology and material to have high salt rejection rate, high water permeation, strong chemical withstanding and excellent anti-fouling performanceThe elements fit for the application areas such as brackish water, industrial wastewater treatment and other fields with TDS levels up to 10,000ppm. The products have a large range of cleaning pH value (pH 1-13), which can rapidly address membrane fouling issues.


Product Features

High salt rejectionthe standard salt rejection generally reaches above 99.50%, with a maximum of up to 99.80%;

Strong chemical tolerance: the elements can be washed by acid or alkali for multiple times, having longer life expectancy;

Strong fouling resistance performance: the special anti-fouling coating can ensure the sheets work normally under extreme conditions.



Performance Parameters

Model

Average Flux GPDm²/d

Stable Salt Rejection Rate/%

Effective Membrane Area/ft²(m2)

Feed Spacer Thickness /mil

FLM-BW8040-FRB(400)

1050039.7

99.50

40037

34

1.  Note: individual element permeate productivity may vary  ±15%.

2. Test conditionspressure225psi(1.55MPa)temperature25℃2000ppm NaCI, recovery rate 15%pH 7.5-8.0.


Element Dimensions

NF-1

Model

A

B

C

FLM-BW8040-FRB(400)

40.0 (1016)

1.125 (29)

7.9 (201)
