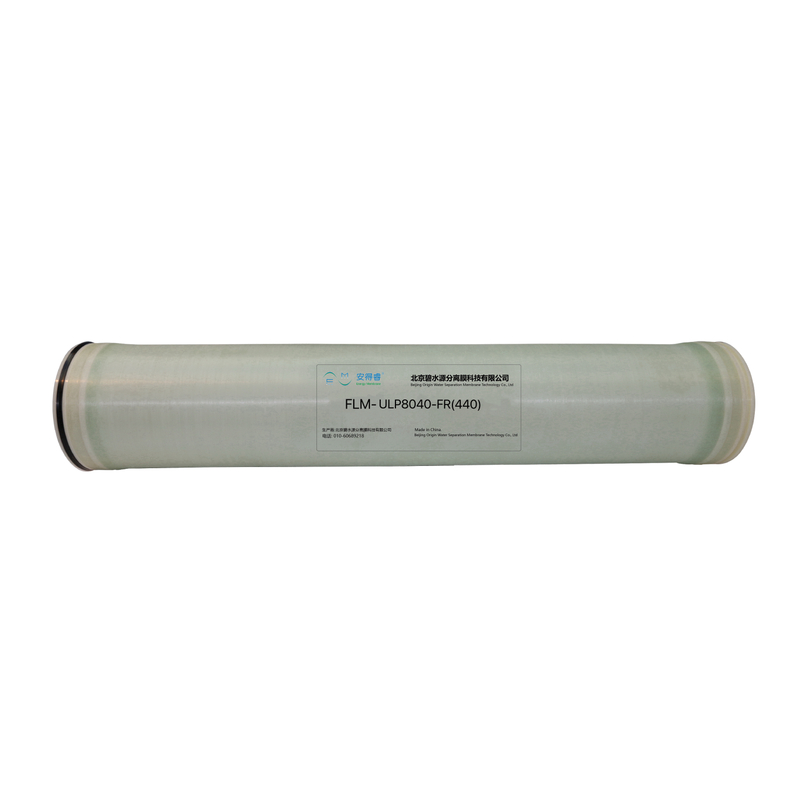

FLM-ULP8040-FR（440）
Beijing OriginWater Co.,Ltd.
ULP series industrial ultra-low pressure RO membrane elements are applied for desalination of surface water and groundwater, feature in high flux under lower operating pressure, which can greatly reduce the operating cost of the system, reduce the investment cost of pumps, pipelines, containers and other equipment, and improve economic benefits. The products can be used in desalination fields such as brackish water, surface water, and tap water with TDS levels up to 2000ppm.
Product Features
High-efficiency filtration: effectively remove heavy metals (lead, arsenic, etc.), bacteria, viruses, organic pollutants and dissolved salts;
High flux: high permeability rate and desalination rate can be achieved under lower operating pressure;
Strong chemical resistance: elements can withstand and repeated acid and alkaline chemical cleaning cycles thus ensuring long service life.
Performance Parameters
Model | Average Flux GPD（m3/d） | Stable Salt Rejection Rate/% | Effective Membrane Area/ft²(m2) | Feed Spacer Thickness /mil |
FLM-ULP8040-FR ( 440 ) | 11500 ( 43.5 ) | 99.50 | 440（41） | 28-LD |
1. Test conditions: pressure: 150psi(1.03MPa), temperature: 25°C, 1500 ppmNaCI, recovery rate 15%、pH 7.5-8.0.
Element Dimensions
