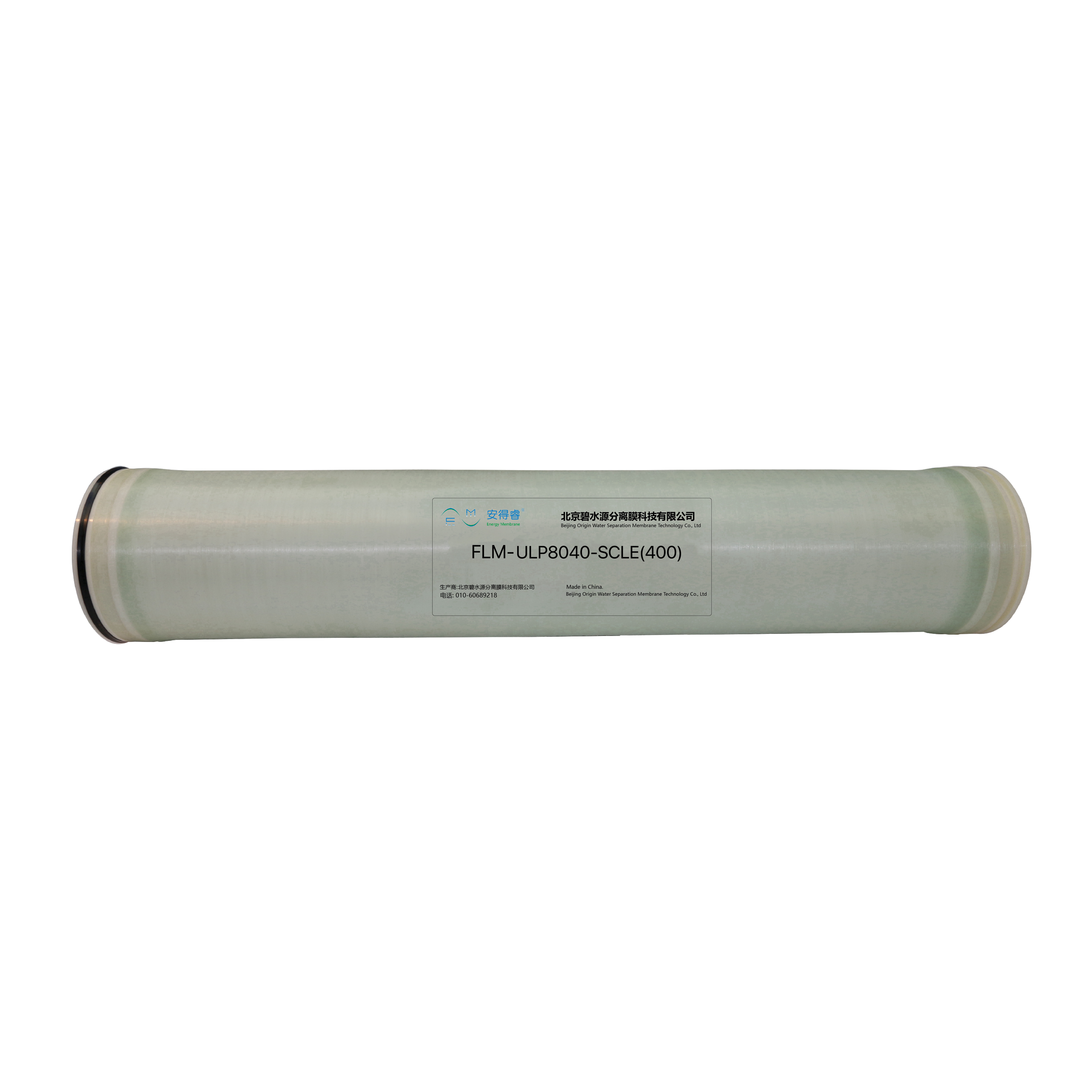

FLM-ULP8040-SCLE（440）
Beijing OriginWater Co.,Ltd.
Low dissolution and high desalination RO membranes are developed specifically for strict water treatment environments. Our products are able to achieve extremely low dissolution contents while implementing high salt rejection rates, ensuring that the produced water is pure and pollution-free, meeting the rigorous water quality requirements of various industries and laboratories. The products are used in the preparation of ultra-pure water in the fields of electronics industry, semiconductor industry, food industry, pharmaceutical industry etc.
Product Features
High rejection rate: total rejection rate is high; High separation rate of organic matter and silicon removal rate;
Low dissolution: rapid TOC rinsing;
Durability: higher alkali and ammonia resistance;
Energy-efficient: lower pressure, lower energy consumption.
Performance Parameters
Model | Average Flux GPD（m3/d） | Stable Salt Rejection/% | TOC Removal Rate/% | Effective Membrane Area/ft²(m2) | Feed Spacer Thickness/mil |
FLM-ULP8040-SCLE（440） | 12000 (45.4) | 99.50 | ≥90.5 | 440(41） | 28-LD |
1.Note: individual element permeate productivity may vary ±15%.
2. Test conditions: 150psi(1.03MPa) 1500ppmNaCI 100mg/L IPA, recovery rate 15%, pH 7.5-8.0, 25℃.

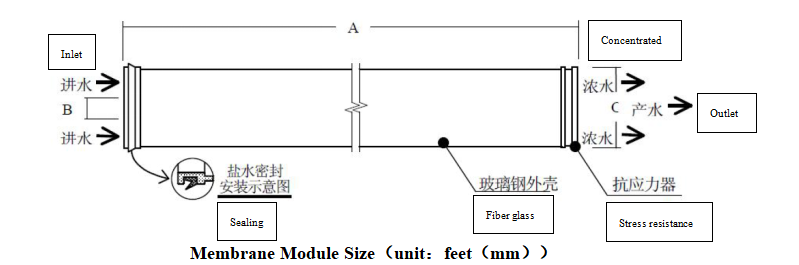

Element Dimensions
