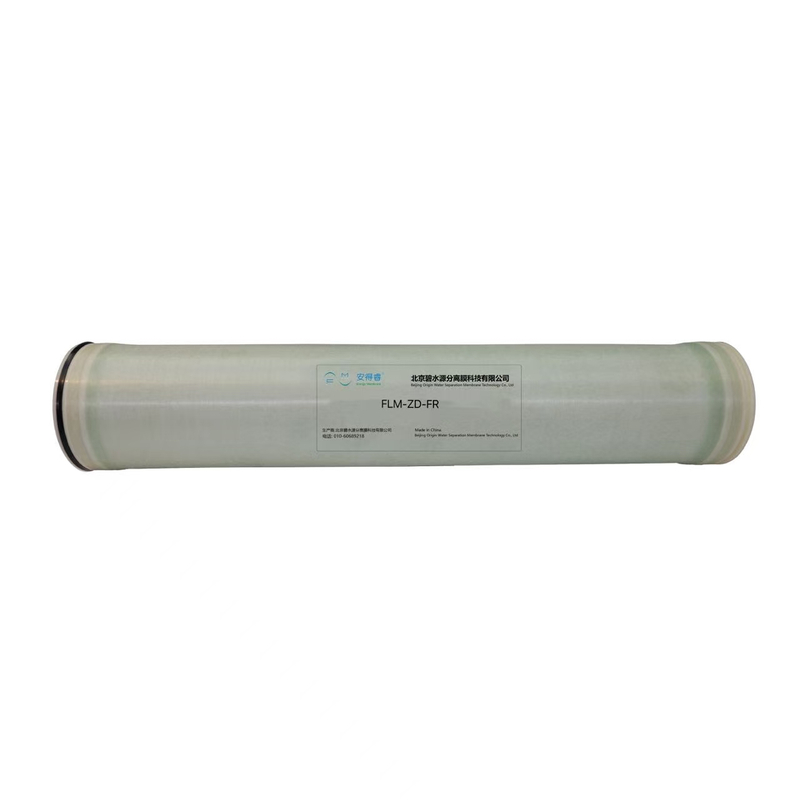

FLM-ZD-FR

A fouling resistance RO membrane module specifically developed and designed for the zero discharge sector;
In various stages of zero discharge treatment processes, it offers membrane module selection based on the characteristics and requirements of wastewater from different industries;
High salt rejection, high flux, and strong fouling resistance, significantly enhancing wastewater reuse rates;
Application in zero discharge membrane processes effectively reduces overall investment and costs, thereby creating better economic and social value for customers;
Feature an anti-contamination coating technology, combined with a 34mil-LD low-pressure differential of the feed spacer thickness which offers strong fouling resistance, effectively reduces cleaning frequency, extends service life, lowers operational energy consumption, and saves operating costs;
A broad cleaning pH range (pH 1-13) and demonstrates stable long-term performance.

Model:
FLM-ZD-FR
Brand:
Beijing OriginWater Co.,Ltd.


Availability:



Inquire Add to Basket

Product Description

The ZD series - industrial zero discharge RO membrane elements can design appropriate process and choose membrane types in various stages of wastewater membrane treatment according to wastewater characteristics and effluent requirements, thus increasing the reuse rate. After the reduction of concentration, the concentration being vaporized and crystallized for a zero discharge result and effectively reduce the entire construction and costs.

Product Features

Low differential pressure technology: effectively reduce operating energy consumption and save costs;

Strong fouling resistance: special anti-fouling coating on the sheet surface effectively reduces the cleaning frequency and reduces the cleaning cost;

Chemical resistance: wide pH tolerance range (1-13) for reliable long-term performance.

Performance Parameters

Model

Average Flux

GPD（m²/d）

Stable Salt Rejection /%

Effective Membrane Area/ft²(m²)

Feed Spacer Thickness/mil

FLM-ZD-FR

11000（41.6）

99.70

400(37）
