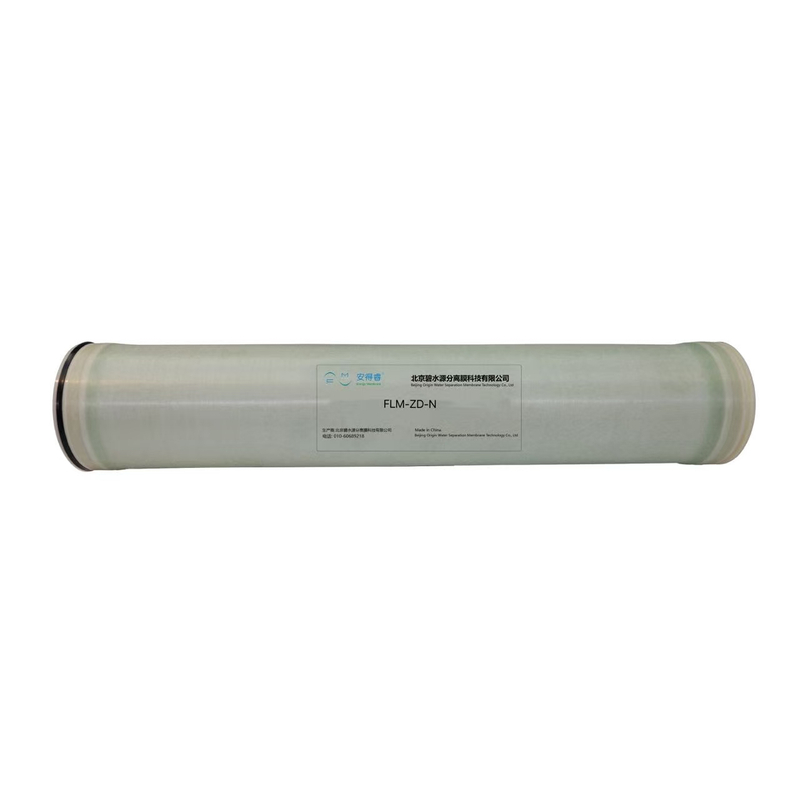

FLM-ZD-N
Beijing OriginWater Co.,Ltd.
The ZD series - industrial zero discharge RO membrane elements can design appropriate process and choose membrane types in various stages of wastewater membrane treatment according to wastewater characteristics and effluent requirements, thus increasing the reuse rate. After the reduction of concentration, the concentration being vaporized and crystallized for a zero discharge result and effectively reduce the entire construction and costs.
Product Features
Low differential pressure technology: effectively reduce operating energy consumption and save costs;
Strong fouling resistance: special anti-fouling coating on the sheet surface effectively reduces the cleaning frequency and reduces the cleaning cost;
Chemical resistance: wide pH tolerance range (1-13) for reliable long-term performance.
Performance Parameters
Model | Average Flux GPD（m²/d） | Stable Salt Rejection /% | Effective Membrane Area/ft²(m2) | Feed Spacer Thickness/mil |
FLM-ZD-N | 7000（26.5） | 98.00 | 400(37） | 34—LD |
1.Note: FLM-ZD-N permeate productivity may vary ±20%;
2. Test conditions: pressure: 70psi(0.48MPa), temperature: 25℃, 2000ppm MgSO4, recovery rate 15%, pH 7.5-8.0.
Element Dimensions
