SUF-R
Beijing Origin Water Co., Ltd

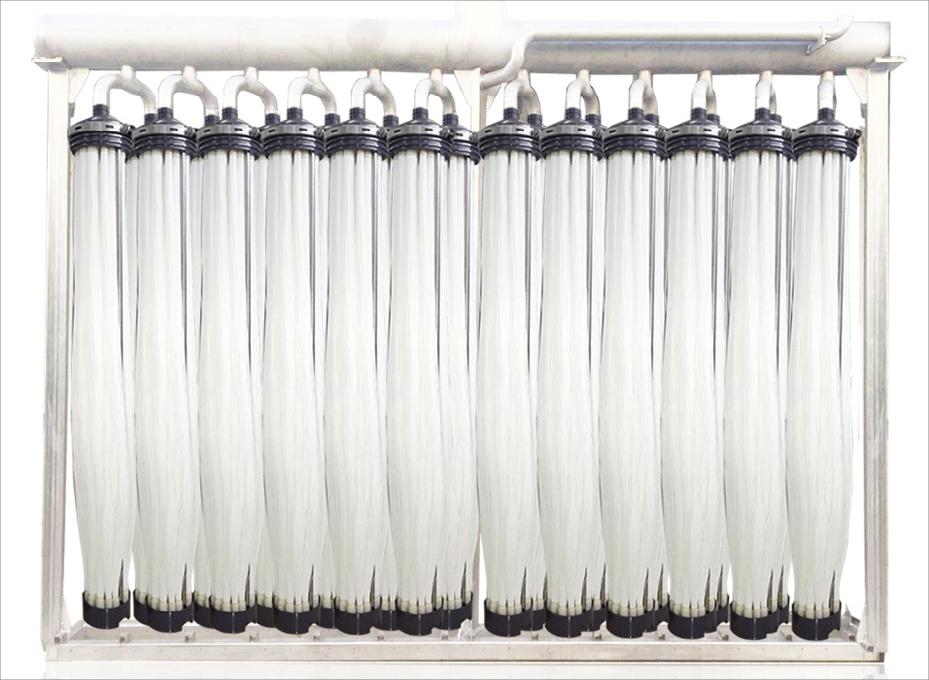

ISO Advanced PVDF Submerged Ultrafiltration Membrane Unit for Municipal Water Supply/Wastewater Treatment/Seawater Desalination
Product Features:
Good Quality of Water Permeated: apertures of membrane are narrowly distributed, the turbidity of water permeated is less than 0.5NTU;
Strong Anti-fouling Performance: special gradient pore grid structure, open flow channel and intergrated aeration design can effectively prevent and control the membrane fouling;
Limited Occupancy Area: filling density is 750m2/750m2, the entire system occupies very limited area;
Long Life Expectancy: fiber reinforced compound membrane manufacturing technology enhances the tensile strength up to 100N or above, and the life expectancy as long as 5 years or more;
Simple Installation and Maintenance: the unit structure is compacted and can be dismantled, which is simple for installation in the medium or large scaled projects.
Specifications:
| Material | PVDF | Form of Modular | Column Type |
| ID/OD | 0.55/1.65 mm | Av. Pore Diameter | 0.02 μm |
| Tensile Strength | >100 N | Design Flux* | 30~60 LMH |
| Transmembrane Pressure Allowance | 0~65 kPa | Recommended Work Temperature | 5~35 ℃ |
| Max. Ph Range | 2~12 | Recommended pH Range | 6~9 |
| Cleaning Method | air-water backwash and chemical cleaning | Back Wash Frequency | 30~90 min per time |
| Back Wash Flux | 30~60 L/m³·h | The Backwash Air Flow Rate | 3.2~4.2 Nm3 / h（single Element） |
| Chemical Cleaning Maintenance Period | every 3~7 days | Recovery Chemical Cleaning Period | 1~2 times per year |
Note: *Design flux is determined by the water temperature and water quality conditions.
| Model | Rated Capacity (m3/d) | Modular Qty. | Dimension |
| SUF-R-600 | 600 | 12 | 2060×468×2906 |
| SUF-R-1200 | 1200 | 24 | 3730×468×2906 |
Notes:
(1) Treatment capacity with water temperature of 10℃ ;
(2) Special specification can be customized.
