ZC-6040-A (MemStar 0615-ED)
Beijing OriginWater Co.,Ltd.

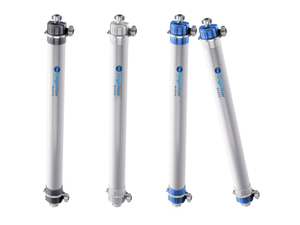

ZC series cylinder typed UF membrane elements adopt a new generation of self-supporting PVDF hollow fiber membrane, feature in high flux and high hydrophilic. The modules utilize an external pressure structure, which can be operated at the dead end or cross-flow, and can be applied in high-quality water treatment fields such as drinking water treatment, industrial zero discharge, and seawater desalination.
Product Features
Uniform pore size: high-precision self-supporting PVDF fiber with small pore size, good uniformity and high quality of yield.
Wide range of products: with a variety of product models, can adapt to different performance and size requirements.
Long life service: high-mechanical membrane fiber withstand repeated air flow scrubbing, and has a long life service.
Wide range of application: the structural characteristics let it adapt to the changes in raw water quality, and the water quality has a wide range of applications.
Specifications and Parameters
Model | Effective Membrane Area (m2) | Dimension (mm) | Material | Fiber Diameter (mm) | Nominal Pore Size (um) | Transportation Weight (kg) |
ZC-6040-A (MemStar 0615-ED) | 40 | Φ160*1730 | PVDF | 0.7/1.3 | 0.02 | 37 |
Element Dimensions
*Please note that no violation of intellectual property involved but compatible with MemStar 0615-ED.
