IHWT
Beijing Origin Water Co., Ltd
Energy-saving Impact Resistance Compact Integrated Wastewater Treatment Tank for Residential/Restaurants

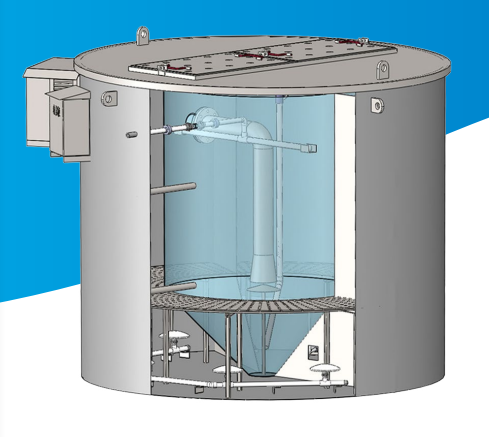

The IHWT (Intelligent Household Wastewater Treatment Tank), as new efficient and dispersed wastewater treatment equipment developed by OriginWater, is mainly used for wastewater treatment in single-family and multi-family houses in some villages and towns. With IFFAS process adopted, the product can make the growth and reproduction of microorganisms are not influenced by hydraulic retention time. As a result, the biodiversity and biomass can be effectively improved. Due to the advantages of activated sludge process and bio-membrane technology, the effluent quality is better than Leve 3 of Discharge Standard of Pollutants for Municipal Wastewater Treatment Plant (GB18918-2002).
Advantage
Integration: Highly integrated equipment, small footprint, easy to be transported;
Low cost: Low investment cost, low energy consumption;
Maintenance-free: Less power equipment, and easy to be controlled;
Impact resistance: Diversified sludge population, strong impact resistance to water quantity and quality.
| Type | Capacity （m3/d） | Dimension Length*Width *Height（m） | Equipment Room Length*Width *Height（m） | Product Power （kW） | Area （m2/m3） |
| IHWT-2 | 1~2 | φ1.5×1.8 | 0.3×0.3×0.3 | 0.045 | 0.88 |
| IHWT-5 | 3~5 | φ1.7×2.2 | 0.3×0.3×0.3 | 0.045 | 0.45 |
| IHWT-15 | 10~15 | φ2.6×2.2 | 0.5×0.5×0.5 | 0.11 | 0.35 |
| IHWT-30 | 20~30 | φ2.6×2.2(2)* | 0.8×0.8×0.8 | 0.22 | 0.35 |
| IHWT-50 | 50 | φ3×2.7(2) * | 0.8×0.8×0.8 | 0.46 | 0.28 |
Notes: (1) The product power and footprint refer to the IHWT system only; (2) The voltage is 220V and the noise is lower than 50dB; (3) * represents this model consists of two same boxes.
Application
Villages and towns (single-family house, joint households and multi-family houses);
Villa and residential area.
| Type | Capacity （m3/d） | Investment （Ten thousand yuan/m3） | Electrical Cost （yuan/m3） |
| IHWT-2 | 1~2 | 1.5~3.0 | 0.26~0.52 |
| IHWT-5 | 3~5 | 0.8~1.3 | 0.12~0.2 |
| IHWT-15 | 10~15 | 0.4~0.65 | 0.12~0.18 |
| IHWT-30 | 20~30 | 0.35~0.6 | 0.12~0.18 |
| IHWT-50 | 50 | 0.3~0.35 | 0.1~0.15 |
Notes: (1) The economic indicator refers to IHWT system only; (2) The electricity price of electrical degree is calculated as RMB 0.6/(kW·h); (3) The general pretreatment includes influent tank, preliminary sedimentation tank, regulation tank and corresponding supporting equipment, etc., and the investment about RMB 2,000~6,000/m3 according to different scales and construction standards.
